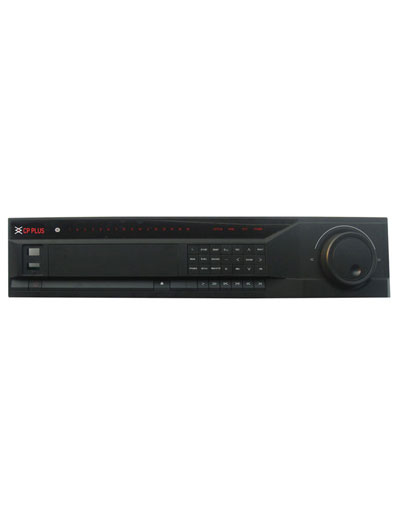

128 Ch. H.265 4K Network Video Recorder

Up to 128 channel IP camera input

Up to 12MP resolution preview and playback

Max 384Mbps incoming bandwidth

Support 8 SATA III ports, up to 10TB each, 4 USB(2 USB3.0), 1 eSATA port

2 HDMI / 1 VGA simultaneous video output

Support Multi-brand network cameras

Support RAID 0/1/5/10

Smart Tracking and Intelligent Video

ONVIF Version 2.4 conformance

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

ProcessorIntel Quad-core ProcessorOperating SystemEmbedded LINUXIP Camera Input128 channelTwo-way Talk1 channel Input, 1 channel Output, RCAUser InterfaceGUIVideo Output2 HDMI (up to 3840 x 2160 , Different Source), 1 VGAVideo Resolution3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768Video Recording384MbpsVideo Display Split1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16Channel128 channelMotion DetectionMD Zones: 396(22×18).Video LosssupportsCamera BlankSupportsAlarm Input16ch, low level effective, green terminal interfaceAlarm Output8 Channel, NO/NC Programmable, Green Terminal InterfaceSmart PhoneiPhone, iPad, AndroidBandwidth Incoming384MbpsVideo CompressionH.265/ H.264/ MJPEGHard Disk8 SATA III ports, up to 10TB Each, 1 eSATATrigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips, Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.HDD ManagementSingle, Raid 0/1/5/10 (Support global HDD hot-spare)Recording ModeManual, Schedule (Regular, MD (Motion Detection),Alarm, IVS), Holiday, StopSearch ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Backup ModeUSB Device/Network/eSATA DevicePlayback128Mbps in Raid 5 mode, 64Mbps in single HDD modeMax User Account128 usersRecord Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30sec, Post-record: 10 ~ 300 secEthernet2 RJ-45 Ports (10/100/1000Mbps)Interface Ports4 USB ports(2 USB2.0, 2 USB3.0), 1 RS485, 1 RS232ProtocolsHTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,Alarm Server, IP Search , ONVIF 2.4, CGI ConformantPower SupplyAC100V ~ 240V, 50 ~ 60 HzPower Consumption<20W (Without HDD)Working Temp-10 ~+55°C / 10~90%RH / 86~106kpaDimension444mm x 457mm x 95mmWeight9kg (without HDD)
