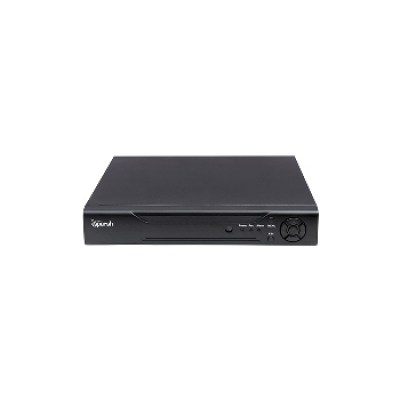

SR-NP16F601-H 16 CH ,1 SATA H.265+ NVR 5MP
SR-NP16F601-H
₹9466.00₹5699.00
Out of stock
H.265+ Video Compression
• Embedded LINUX Operating Systems
• Pan, Tilt, Zoom and Speed Dome Controls
• Support Various Mobile Monitoring IOS
• Support Multiple Web Browsers
• Support Triple Watchdog Function
• Support HDD up to unlimited
• Support ONVIF
• Support Two Way Audio
Ordering Information
SR-NP16F601-H
Operation System
Embedded Linux
Processor
Embedded Processor
Video Input
IP Camera Input
16ch
Incoming Bandwidth
80Mbps
Video Output
VGA
1ch,1920×1080,1280×1024,1280×720,1024×768
HDMI
Ver. 2.0, 1ch,3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio
Two-way Voice Talk
1ch In (2Vpp,1Kohms)/1ch Out(2Vpp,300ohms), RCA Interface
Decode
Video Format
H.264/H.264+/H.265/H.265+
Resolution
5MP@16ch/4MP@16ch/3MP@16ch/2MP@16ch/1.3MP@16ch/1MP@16ch
Audio Format
G.711A, G.726
Audio Bitrate
64Kbps
Live View/Playback Capability
16ch
Playback
Multi-channel Playback
16ch
Function
Event/Tag/Smart/External/Face Search
Intelligent Function
Smart Analysis
Support smart IPC intelligent function: Face Detection, Target counting, left/lost area detection, line crossing detection, Audio detection, Scene change Detection, Object counting, fence crossing, video loss, video tampering (Supported in Smart IPC Series)
Intelligent Function local
1ch Face Detection or 2ch Intrusion Detection (Support any ONVIF Camera)
ONVIF
Ver. 2.6
Motion Detection
Each Channel Support 396 (22×18) Detection Area; Support Multi-level Sensitivity
Pre-& Post Alarm Buffer
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Snapshot
Support JPEG Snapshot
SATA
1 SATA Port
Max. Capacity SATA
10 TB per SATA
External Interface
Network Interface
RJ45,10M/100M Suitable Ethernet Port
USB Interface
2 USB2.0
General
Packing
410x293x60mm
Dimensions
215x235x45mm
Weight
9 Kg (Without HDD)
Installation
Desktop Installation
Power Supply
DC 12V 2A
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Consumption
20W (Without HDD)
Certification
CE, FCC, BIS Registered
