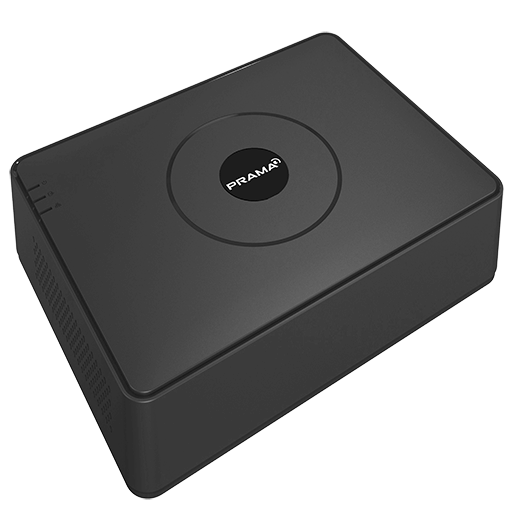

PT-DR1A16G-K1 16-ch 1080p DVR

• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Up to 18-ch IP camera input (up to 5 MP)
• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
• Up to 10 TB capacity per HDD

VIDEO/AUDIO INPUT

• Video compressionH.264+/H.264

• Analog video input16-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HD-TVI input1080p25, 1080p30, 720p25, 720p30

• AHD input1080p25, 1080p30, 720p25, 720p30

• HDCVI input1080p25, 1080p30, 720p25, 720p30

• CVBS inputSupport

• IP video input2-ch(up to 18-ch)
  Up to 1.3MP resolution

• Audio compressionG.711u

• Audio input/Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)

VIDEO/AUDIO OUTPUT

• HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

• Frame rate“Main stream: When 1080p lite mode enabled:
  1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
  When 1080p lite mode not enabled:
  For 720p stream access:
  720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
  For SD stream access:
  WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  Sub-stream:
  CIF/QVGA/QCIF@25fps (P)/30fps (N)
  ”

• Video bit rate32 Kbps to 4 Mbps

• Audio output1-ch, RCA (Linear, 1 KΩ)

• Audio bit rate64 Kbps

• Dual streamSupport

• Stream typeVideo, Video & Audio

• Synchronous playback16-ch


NETWORK MANAGEMENT

• Remote connections128

• Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

HARD DISK

• SATA1 SATA interface

• CapacityUp to 10 TB capacity for each disk

EXTERNAL INTERFACE

• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

• USB interfaceRear panel: 2 × USB 2.0

GENERAL

• Power supply12 VDC

• Consumption (without HDD)≤ 20 W

• Working temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)

• Working humidity10% to 90%

• Dimensions(W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

• Weight(without HDD)≤ 1.2 kg (2.6 lb)
