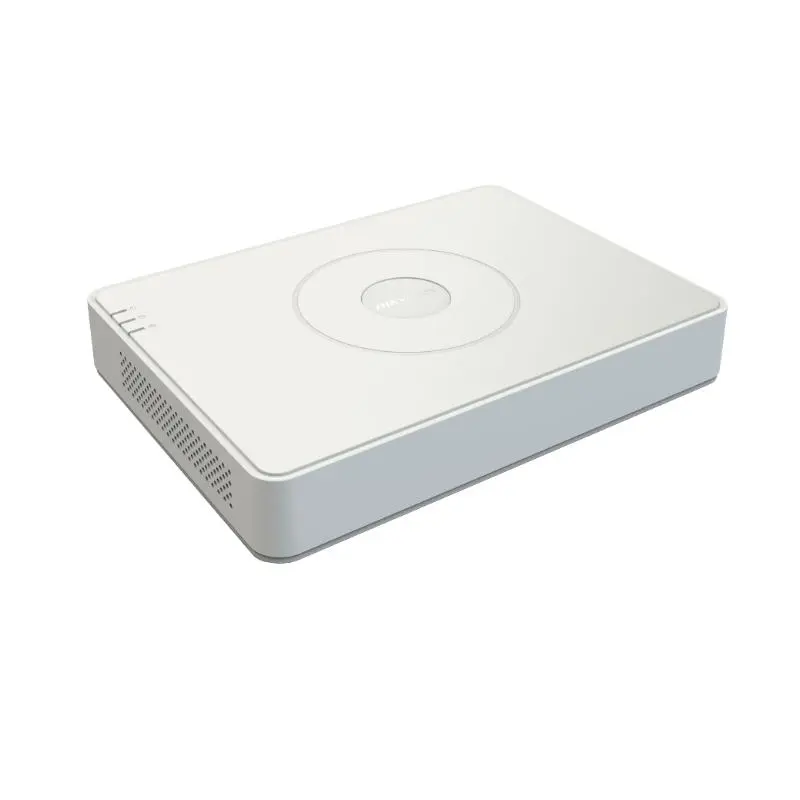

16-ch 1080p Mini 1U H.265 AcuSense DVRiDS-7116HQHI-M1/S

16-ch 1080p Mini 1U H.265 AcuSense DVR

• Deep learning-based motion detection 2.0 for all analog channels

• Deep learning-based perimeter protection

• Efficient H.265 pro+ compression technology

• Encoding ability up to 1080p @ 15 fps

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

• Up to 24 network cameras can be connected.

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection

• Line Crossing Detection/Intrusion Detection4-ch

• Facial Detection

• Facial Detection And CaptureFace picture detection, face picture search

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps

• Dual-StreamSupport

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

• Video And Audio

• IP Video Input

  2-ch (up to 18-ch)

  Enhanced IP mode on:

  8-ch (up to 24-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• Incoming Bandwidth96 Mbps

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

• CVBS InputPAL/NTSC

• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  16-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Synchronous Playback16-ch

• Network

• Remote Connection128

• Total Bandwidth128 Mbps

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

• Network Interface

  1, RJ45 10M/100M/1000M

  self-adaptive Ethernet interface

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 10 TB capacity for each disk

• USB InterfaceReal panel: 2 × USB 2.0

• Alarm In/OutN/A

• General

• Power Supply12 VDC, 1.9 A

• Consumption≤ 15 W

• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

• Weight≤ 1 kg (2.2 lb)
