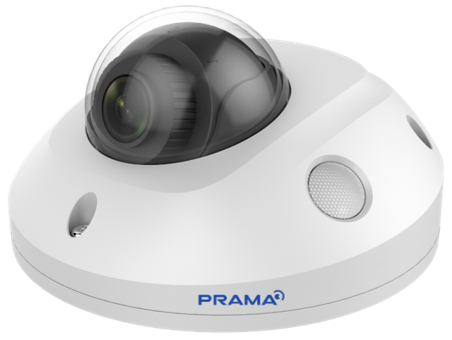

PT-NMC627P-IM/ND2 MP IR Mobile Dome Network Camera

• 1/2.8-inch Progressive Scan CMOS
• 1920 × 1080 @ 30fps
• 2.0/2.8/4/6/8 mm fixed lens
• Three streams
• 120dB WDR
• 3D DNR
• 4 behavior analyses, and face detection
• Smart encoding: low bit rate, low latency

• ROI
• IP67, IK10
• H.265, H.265+

CAMERA

• Iamage Sensor1/2.8-inch Progressive Scan CMOS

• Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s

• Slow ShutterYes

• Auto-IrisNo

• Day & NightIR Cut Filter

• Digital Noise Reduction3D DNR

• WDR120 dB

• Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°

LENS

• Focal length2.0/2.8/4/6/8 mm fixed lens

• ApertureF1.6

• FOV“2.0 mm @ F1.6, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 153°
  2.8 mm @ F1.6, horizontal FOV 110°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
  6 mm @ F1.6, horizontal FOV 56°, vertical FOV 31°, diagonal FOV 65°
  8 mm @ F1.6, horizontal FOV 40°, vertical FOV 22°, diagonal FOV 46°”

• Lens MountM12

IR

• IR Rangeup to 30 m

• Wavelength850 nm

COMPRESSION STANDARD

• Video Compression“Main stream: H.265/H.264
  Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264”

• H.264 TypeMain Profile/High Profile

• H.264+Main stream support.

• H.265 TypeMain Profile

• H.265+Main stream support.

• Video Bit Rate32 Kbps to 16 Mbps

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM

• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

SMART FEATURE-SET

• Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection

• Exception DetectionNo

• Face DetectionYes

• Region of Interest1 fixed region for main stream and sub stream


• Max. Resolution1920 × 1080

• Main StreamH.265/H.264

• Sub StreamH.265/H.264/MJPE G

• Third StreamH.265/H.264

• Image EnhancementBLC, 3D DNR

• Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by software or web browser

• Target CroppingNo

• SVCH.264 and H.265 encoding

• Day/Night SwitchDay/Night/Auto/Schedule

• Picture OverlayNo

NETWORK

• Network StorageMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

• Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

• General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

• Firmware VersionV5.5.4

• Simultaneous Live ViewUp to 6 channels

• User/Host“Up to 32 users
  3 levels: Administrator, Operator and User”

• SoftwarePRAMA VMS Standard, PRAMA-ONLINE

• Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+

INTERFACE

• Audio1 Built-in mic

• On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

• Reset ButtonYes

GENERAL

• Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)

• Power SupplyPoE (802.3af, class 3)

• Power Consumption and CurrentPoE: (802.3af, 36V-57V), 0.2A to 0.13A, Max: 7.5W

• Protection LevelIP67, IK10

• MaterialMetal

• DimensionsCamera: Φ 110 mm × 57.4 mm (4.3inch × 2.26inch), with base: Φ 110 mm × 69.4 mm (4.3inch × 2.7inch) With package: 252 mm × 160 mm × 95 mm (9.9inch × 6.3inch × 3.7inch)

• WeightCamera: Approx. 580 g (1.3 lb.) With package: 860 g (1.9 lb)
