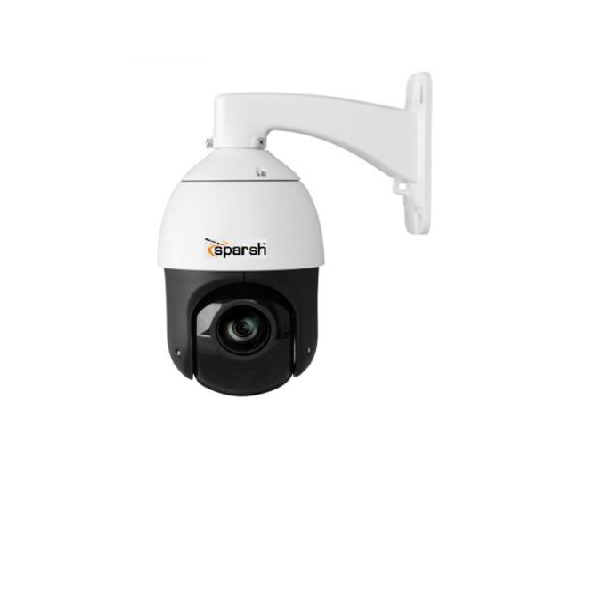

SS-IBR20O30P 2MP PTZ Outdoor IR Speed Dome 30X 120 MTR
SS-IBR20O30P
₹128500.00₹49500.00
Out of stock
Key Features
• 1/2.8’’ Progressive Scan CMOS Sensor
• Support Dual-streams encoding
• Compression techniques:H.264/MPEG4
• 2MP High Resolution
• Support ONVIF
• 30X Optical Zoom
• Wide Dynamic Range up to 69dB
• WDR, Day/Night(ICR),Ultra DNR, Auto iris, Auto focus
• IR Distance 120m
• Intelligent IR Illumination
• IP66 Ratings
Model
SS-IBR20O30P
SENSOR
1/2.8’’ Progressive Scan CMOS Sensor
EFFECTIVE PIXEL
(1920X1080)
RESOLUTION
2 MP
SIGNAL & SYSTEM
PAL
ENCODING MODE
VBR/CBR
MIN. ILLUMINATION
Color:0.05Lux@(F1.6,AGC ON)
B/W: 0.01Lux@(F1.6, AGC ON )
OPTICAL ZOOM
30X
SUTTER SPEED
1/25~ 1/30000sec
WHITE BALANCE
Auto/indoor/outdoor/manual
AGC
Auto
SNR RATIO
≥52dB
3D DNR
Support
WDR RANGE
DWDR (Up to 69dB)
BACK LIGHT COMPENSATION
Auto/manual
PICTURE EFFECT
Auto/color/B&W/negative
DAY/NIGHT
IR cut filter, color/B&W/auto
WDR
Up to 69dB
FOCUS MODE
Auto/manual
LENS INITIALIZATION
Auto
EXPOSURE
Auto/manual
CONTRAST/SATURATION
Adjustable
IMAGE ORIENTATION
Mirror /flip/Anti-flicker
PRIVACY ZONE
Yes
MOTION DETECTION
Yes
IRIS
Fixed
LENS FURNISHED
4.3-129mm
PAN & TILT
PAN ROTAION RANGE
0〫~360 〫
TILT ROTATION RANGE
- 5〫~90 〫/Auto Flip
PAN SPEED
0.5〫~120 〫/s
TILT SPEED
0.5〫~100 〫/s
PRESET POSITION
255
NETWORK
REMOTE MONITORING
IE Browsing, CMS 3 Control Software
USER ACCESS
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
PROTOCOLS
TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP, QoS, PPCN, 802.1X, SIP, PORT, RS48
ONVIF
Yes
ETHERNET
10/100Mbps self-adaptive Ethernet interface
NETWORK
RJ45
INFRARED
IR DISTANCE
Up to 120m
IR ACTION MODE
Auto/Manual/Camera
ICR
Yes
GENERAL
VIDEO COMPRESSION
H.264
AUDIO COMPRESSION
G711A
AUTO TRACKING
Yes
WORKING TEMPERATURE
Outdoor: -30°~ +60°
POWER SUPPLY
12VDC ±10%, ≤5A
PROTECTION LEVEL
IP66 standard Level 2 lightning protection, 4000V surge protection
ACCESSORIES
Wall-mount bracket, power adapter
PRODUCT CERTIFIED
CE, FCC
