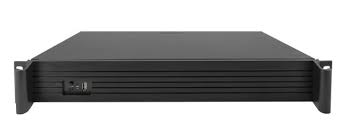

128 CH,4K H.265+ 9HDD NVR SR-NF128FK09-E

Key Features • Support 4K video real-time View 2U NVR, 9SATA ports. • Support H.265+/H.265/H.264 stream • Embedded Linux operating system. • Support video playback, remote monitoring and backup. • 2 X RJ45 10/100/1000M ethernet ports, double IP range. • Support RAID0, RAID1, RAID5, RAID6 and RAID10. • Support NVR smart analysis • Import and export 5000 Face Database • Recognition accuracy is more than 98%

MODEL SR-NF128FK09-E Network Video Input 128CH 4K IP camera input, corresponding channel of face recognition Processor Quad-core Embedded processor Operating System Embedded Linux Network Access Bandwidth 640Mbps Video Compression H.265+/H.265 /H.264 Video Output 1 CH VGA output (1920×1080@60Hz 1280×1024@60Hz) 1 CH HDMI output (3840×2160@30Hz, 1920×1080@60Hz, 1280×1024 @60Hz) Video Preview Mode 128ch(16ch face Recognition+112ch 4K,64-128ch 4K Human Detection) Face Database Support import and export 5000 face database Video Bit Rate 16Kbps-16Mbps Video Resolution 4K/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF Preview Capability 1×4K, 4x4K,6(1*4K+5*2MP), 8(1*4K+7*2MP), 9x2MP, 16x1080P, 25x720P, 36xD1, 64xD1, 128xD1 Image Display 1/4/6/8/9/16/25/36/64/128 image display Snapshot Mode Support timing snapshot, manual snapshot, JPEG format Motion detection Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable Privacy Mask Support 4 zones Intelligent Detection Support Smart IPC intelligent function: Face detection, Target Count, Object Count, Object Left/Lost, Electric Fence, Line Crossing, Face Grouping List, Humen Detection, Retrograde Detection (wrong Direction), Leave Position Detection, face recognition black and white list classification AUDIO Audio compression G.711u
