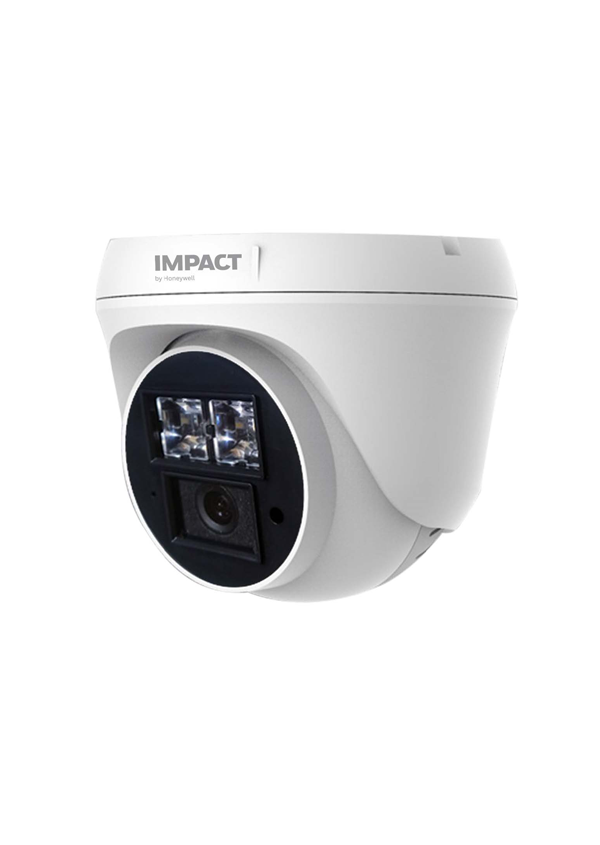

5MP AHD COLOR VISION DOME CAMERAI-HADC-5005PI-LC

I-HADC-5005PI-LC

The Dome form factor version of the 5MP AHD Color Vision Camera records and relays high definition video in color, in all lighting conditions, including at night. The video feed experiences no loss in quality across long distances, even when coaxial cables are used to transmit it. The 5MP AHD Color Vision Camera is compatible with all major video formats and is equipped with a 1/2.7” Progressive Scan Digital Image Sensor. Its Digital Wide Dynamic Range (DWDR); Digital Noise Reduction (DNR); Auto White Balance (AWB); Auto Back Light Compensation (BLC); and IR Cut Filter capabilities, allow it to deliver high image quality and clarity.

FEATURES

• 1/2.7” Progressive Scan Digital Image Sensor

• Long distance realtime transmission

• Range 10-20m

• 3.6mm Lens

• Supports ultralow illumination

• True Day /Night

• IP66 Compliant

• OSD Control 4 IN 1 OUTPUTS (AHD-TVICVI- CVBS)

  ---

  Model No.5MP AHD COLOR VISION DOME CAMERASignal SystemPALImage Sensor1/2.7” Progressive Scan Digital Image SensorEffective Pixel2560x1920,Horizontal Resolution5MP@25FPS, 1080P@25 FPS, 720P@25FPSLeds2pcs White LED, Range 10-20Mtr.Lens Furnished3.6mmLens InterfaceM12Signal/Noise Ratio≥60dBShutter Control1/50 sec to 1/50,000 secMin Illumination0.001Lux @ (F1.2, AGC ON)SynchronisationInternalWhite BalanceAuto/ ManualBack Light CompensationAuto/ ManualGain ControlAuto/ ManualVideo Output SignalHD Analog OutputTransmission DistanceUp to 500m over coaxial cableCoaxial OSD Control4 IN 1 Outputs (AHD-TVI-CVI-CVBS)Operating Conditions-10°C ~ +60°C, Humidity 90% or less (non-condensing)Power SupplyDC 12V ± 10%Current , Power Consumption250mA, Max 3.5WDimension (Lxwxh) , Weight105mm x 105mm x 95mm, 225gCertificationsBIS
