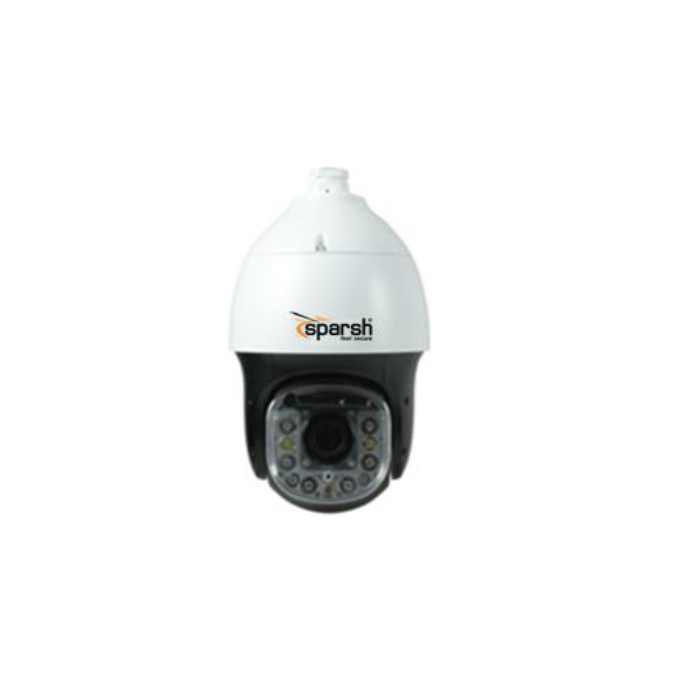

SS-IPRDOP-(44)-S1/S2 5MP PTZ IP Super Starlight Camera 44X
SS-IPRDOP-(44)-S1/S2
₹270000.00₹198950.00
Out of stock
Key Features
• 1/1.9” 5MP Progressive Scan CMOS sensor
• Support Triple-streams encoding
• Compression techniques: H.265,H.264, M-JPEG
• 2592X1944, 5MP High Resolution
• WDR, Day/Night(ICR), 3D DNR, Auto iris, Auto focus
• IR Distance 400m
• Built-in heater, air cycle system and freeze proof
• IP66/IP67 weather proof Compliant
mage sensor
1/1.9” Progressive Scan CMOS sensor
Effective pixel
(2592X1944) 5MP
Min. Illumination
Color:0.02Lux, BW:0.0002Lux; Color DSS:0.002Lux, BW DSS:0.001Lux
Day/night
Auto/Day/Night
Optical zoom
30X
44X
Synchronization
Internal Synchronization
Shutter speed
1/1 sec ~ 1/30000 sec
White balance
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC
Auto
Auto iris
Support
SNR ratio
≥65dB
3D DNR
Auto/On/Off
Back light compensation
Support
Digital zoom
16X
WDR
Upto 120dB, On/Off
HLC/BLC
On/Off
DIS
On/Off
Defog
On/Off
Privacy mask
24 privacy masks programmable
Image Mirror
Off/H-mirror/V-mirror/HV-mirror
Image overlapping
Support
Focus mode
Manual/Auto /One Push
Lens initialization
Auto
Exposure
Program/Shutter/Manual
Auto iris
Support
Focal length
4.3mm~189mm
6mm~264mm
Iris
F=1.4(Wide)-4.6(Tele)
F1.6~F5.3
Angle of View
63.4° ~ 2°
61.8° (w)~2° (t)
Min. Work Distance
0.01m (Wide) - 1.5m (Tele)
Motion detection
4 Zones, Max 3 schedule each Day can be configures
PTZ Function
Pan/tilt range
Pan: 360°endless, Tilt: -20° - 90° (180 ° Auto Flip)
Manual control speed
Max.400 °/sec (proportional to zoom ratio)
Preset speed
Pan: 400° /s; Tilt: 240° /s
Control Mode
ON/OFF/AUTO
Preset
Up to 500
Preset accuracy
±0.1°
Auto scan
8
Pattern
8
Tour
8
Schedule
16
RS 485
Support
Other PTZ functions
Auto Flip, Parking Action, Auto protocol identification, home return, Power up Action
Alarm in/out
8CH/2CH
Alarm trigger event
Alarm out, Preset, Scan, Pattern, Group, Tampering Alarm
Protocol
PELCO D/P
Baud rate
2400/4800/9600 bps
Wiper
Yes (optional)
IR FUNCTION
IR Radiation distance
850nm, Approximately 500m
Infrared mode
Auto/ Manual/ Semi-Auto
NETWORK
Network connection
1 RJ45 10M/100M self-adaptive Ethernet port
Web Server
Yes
SD card
Support up to 256 GB, mini SD Card
Video compression
H.265,H.264, M-JPEG
Video codec
H.265,H.264 (MPEG-4 Part 10/AVC) Baseline, Main profile, High Profile), MJPEG
Audio compression
G.711a/G.711u/RAW_PCM
Video bitrate
CBR(200-12000kbps), VBR
Frame rate
Max.2592P@25/30fps
Audio in/out
1CH (Line in)/1CH
Main Stream
30fps (3072×1728), 60fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
20fps (3072×1728), 30fps (2560×1440, 2304×1296), 60fps (1920x1080, 1280x960, 1280x720)
Sub Stream
30fps (704×480, 704×240, 640×360, 352×240)
30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
30fps (1920×1080, 1280×960, 1280×720, 640×480, 704×480, 352×240)
25fps (352×288) NTSC: 30fps (352×240)
Network protocol
ONVIF2.4.1, Profile S, IPv4/IPv6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP, Bonjour, IGMP, SNMP, NTP, HTTP, HTTPS, TSL, SSL, 802.1X, QoS, DNS, ARP, ICMP
Max user access
20 Users
Alarm trigger event
Alarm in, Schedule
Remote Upgrade Online
Support
GENERAL
Dimension
Main unit without mount bracket: Φ185mm*288.5mm
Net weight
2.8 Kg(Only PTZ dome without mount bracket)
Gross weight
5.2Kg (with wall mounting bracket)
Working environment
-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Fan & heater
Support
Power supply
DC12V /AC 24V
Power consumption
AC24V: 40W Max., DC12V: 36W Max.
Ip rating
IP66/IP67 weather proof Compliant
Vandalism protection
IK10
Surge Protection
TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Product certified
CE, FCC, IEC-60950-1, IS13252 Part 1:2010, BIS
