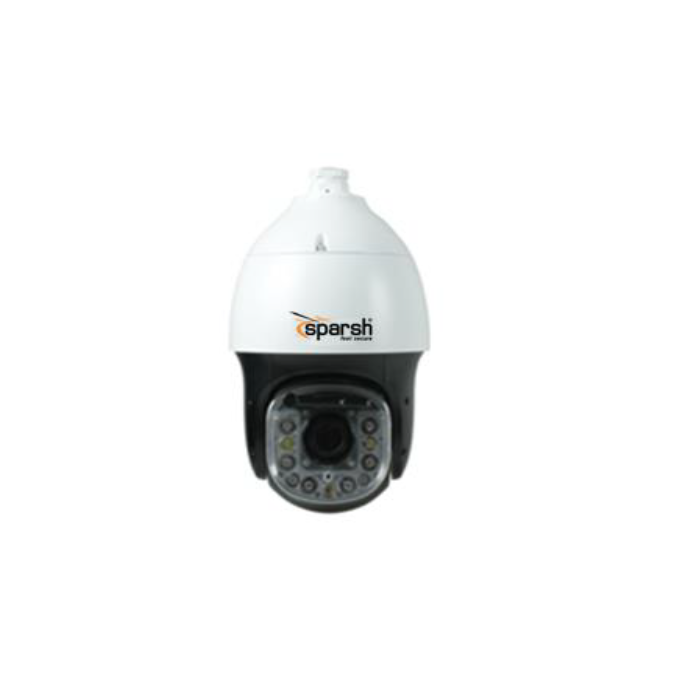

SS-IPRDOP-(36)-S1/S2 5MP Starlight IP PTZ Camera 36X 500MTR

SS-IPRDOP-(36)-S1/S2

 Key Features
•  Support max 1920*1080
•  Smart Laser IR up to 500M
•  Optical Zoom: 36X, Digital Zoom: 16X
•  Compression techniques: H.264/H.265/MJPEG
•  3D DNR, WDR, HLC, Dual-ICR, AWB, AGC, BLC
•  Support SD card (up to 256GB)
•  IP67 Compliant
•  IK10 Compliant

CAMERA

Sensor

1/1.8" CMOS

Effective Pixel

1952(H) x1241(V)
)

Min. Illumination

Color: 0.0008 Lux @(F1.5,AGC ON)

Black&White:0.0001Lux @(F1.5,AGC ON), 0Lux at IR On

White Balance

Auto/ ATW/ Manual/Daylight lamp/ Sodium lamp/Indoor/outdoor

AGC

Auto/manual

SNR ratio

≥60dB

Back light compensation

Support

HLC

Support

Smart Defog

Support

WDR

Up to 140dB

DNR

2D, 3D

Exposure Mode

Auto/ Manual/ Iris First/ Shutter First

Shutter Time

1s-1/100000s

Day& Night

Dual-ICR

Optical Zoom

36X

Digital Zoom

16X

Privacy Masking

24 Dynamic Privacy Masks; Optional Multiple Colours

Auto Focus

Auto/ Semi-automatic/ Manual

OSD

16×16,32×32,24×24,48×48,64×64 Character Size time/Date/ Week/Character in 5 Regions PTZ Angle

LENS

Focal Length

4.6mm-167mm,36X

Zoom Speed

Approx.4.4s(Optical Wide-Tele)

Angle of View

Horizontal field of view: 59.8° to 2.0° (wide-tele)

Vertical field of view: 33.6° to 1.1° (wide-tele)

Diagonal field of view: 68.6° to 2.3° (wide-tele)

Minimum Working Distance

10-1500mm (Wide-Tele)

Aperture Range

F1.5 ~ F4.8

PAN & TILT

Pan Range

360°endless

Pan Speed

Pan Manual Speed: 0.1° -400°/s

Preset Accuracy

±0.1°

Tilt Range

200° (-20°to 180°)Auto Flip

Tilt Speed

Tilt Manual Speed: 0.1°-400°/s

Preset Speed

0.1° -400°/s

Proportional Zoom

Rotation Speed Can Be Adjusted Automatically According to Zoom Multiples

3D Position

Support

Number of Preset

500

Scan

8

Cruise

8, up to 32 Presets per Cruise

Pattern

8, Each One With 600s Memory or 300 Orders

Power loss recovery

Support

Guard Action

Preset/ Cruise/ Pattern/ Scan

PTZ Position Display

Support

Freeze Frame

Support

RS-485 Protocols

PTZ_PELCO_D, PTZ_PELCO_P, PTZ_TC615_P, DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS

INFRARED

IR radiation Distance

Up to 500Meter

IR radiation Angle

Adjustable by Zoom

INTERFACE

Audio Input

1-ch Mic- in(Line in Interface) Line Input 2-2.4V[p-p]; Output Impedance 1KΩ, ±10%

Audio Output

1-ch, Line level, Impendence: 600Ω, Built-in speaker in S2 Model

Ethernet

1-ch RJ45 10M/ 100M

Alarm Input

S1: 1-Ch

S2: 8-ch

Alarm Output

S1: 1-Ch

S2: 2-ch

On-board Storage

Micro SD Card Slot, up to 256GB

BNC

1.0Vp-p / 75Ω, NTSC (or PAL) Composite (Available in S2 Model)

RS-485

1-ch(Available in S2 Model)

NETWORK

Max Image Resolution

1920×1080

Main Stream

1920×1080@25/30fps

1280×960@25/30fps

1280×720@50/60fps

704×480@50/60fps

1920×1080@50/60fps

1280×960@50/60fp

1280×720@50/60fps

704×480@50/60fps

1920×1080@50/60fps

1280×960@50/60fp

1280×720@50/60fps

704×480@50/60fps

1920×1080@50/60fps

1280×960@50/60fp

1280×720@50/60fps

704×576@50/60fps

Sub Stream

704×576@25/30fps

704×576@25/30fps

704×576@25/30fps

704×576@25/30fps

Third Stream

352×288@25fps/30fps

1920X1080@25/30fps

Image Compression

H.265+/ H.265/ H.264+/ H.264 H/ H.264 M/ H.264 B/ M-JPEG

ROI Encoding

20 Dynamic Areas for Both Main and Sub Stream

Audio Compression

G711A/G711U

Protocols

IPv4/IPv6/ HTTP/ HTTPS/ 802.1x/ QoS/ FTP/ SMTP/ UPnP/ SNMP/ DNS/ DDNS/ NTP/ RTSP/ RTP/ TCP/ UDP/ IGMP/ ICMP/ DHCP/PPPoE/SSL/TCP-IP/IGMP/IPFILTER/ARP

Remote Connection

20 Users Access at the Same Time

User Permission

Up to 32 Users, 4 Levels

Security Measures

User Authentication (ID and PW)

Host Authentication (MAC Address)

IP Address Filtering

Web Browser

CHROME, IE, FIREFOX

System Compatibility

ONVIF (Profile S), ONVIF (Profile G), SDK, CGI

ADVANCE

ANR

Support, Record in SD card when network fails & Match with NVR Recording on reconnection

Smart Warning Analytics

When someone invades in marked area PTZ shall turn on Built in White light and make audible notification from built in speaker. If invader stays in perimeter areas over 30 seconds, then PTZ will turn on LASER & auto tracking (Available in S2 Model)

Video Analytics (VCA)

S1 Models Support:

Tripwire/Double Tripwire/Perimeter/Object Abandon Object Lost/Running/Loitering/Parking/ Crowd Audio Abnormal Detection/Video Abnormal Detection

S2 Models Support:

speaker to warn, even open the green laser for frightening Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Audio Abnormal Detection/Video Abnormal Detection/Face Detection/People Counting/On duty Detection/Auto tracking

Smart-tracking

By Manual/ Panorama/Tripwire/ Perimeter/Early warning trigger (available in S2 Model)

Intelligent Alarm

Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm ,Network Disable Alarm, IP Conflict, MAC Conflict Detection

GENERAL

Language

English

Operating Conditions

 -50°C-70°C, 0～95% RH, Auto Temperature control with built in fan & heater

Power Supply

AC24V, 3A

Power Consumption

18.55W(IR OFF)/ 35.5W(IR ON)

Circuit Protection

TVS 6000V, Lightning/ Surge 4000V Protection

Impact Protection

IP67 Complaint, IP66 Certified EN/IEC 60529

IR LEDs

IR LEDs 10pcs

IR LEDs 8pcs

White LEDs 2pcs

Wiper

Yes (S2 Model)

Dimensions

372mmx222mmx222mm

Weight

5.3KG (IP PTZ Only), 8.75KG (with Packing Box)

Certifications

Safety: CE, FCC, IS/EN:60950-1, IS 13252 (Part 1): 2010, BIS Registered

Ingress Protection: IP66 Certified EN/IEC 60529

IS9000 (Part-2/Section-3):1977 Reaf.2010/ IEC 60068-2-2

IS9000 (Part-3/Section-3): 1977 Reaf.2010/IEC 60068-2-1

IS9000 (Part-4): 2008 Reaf.2015/IEC 60068-2-78:2001

Immunity: FCC
