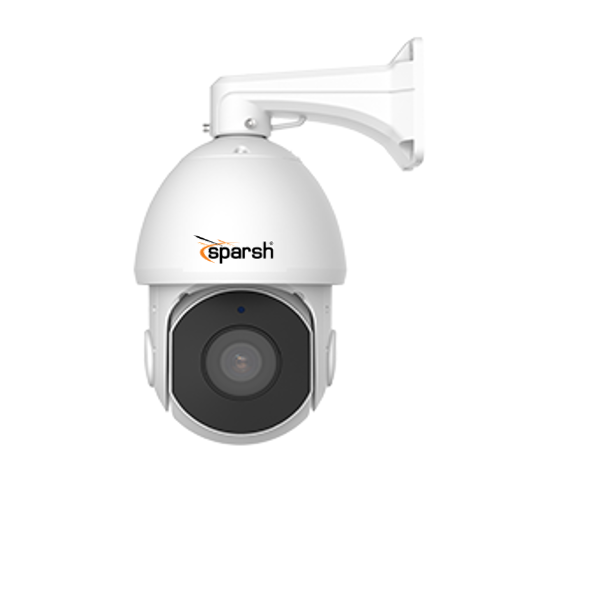

SS-EM)812-(I 8MP IP PTZ CAMERA 300MTR

• Resolution: 8 MP
• Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• IR Range: up to 300mtr
• Digital Zoom:16X
• 0.006 Lux Starlight
• Alarm 4 CH IN/2 CH Out
• Smart Defogger
• Support PoE

Model No.

SS-EM812-(I)-36X

Camera

Image Sensor

1/1.8″ Progressive Scan CMOS

Effective Pixel

384­0x2160

Min. Illumination

Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.55, B/W: 0Lux with IR on

WDR

140dB Super WDR

Shutter Time

1/100000s~1s

Day & Night

ICR Filter Auto Switch

S/N

>55dB

Digital Zoom

16X

Lens

Focal Length

5.7~205.2mm, F1.55~F4.8

36X Optical Zoom

Zoom Speed

Approx7s (Optical Wide-Tele)

Field of View

H71°∼H2°/D84°∼D3°/V55°∼V2°

Minimum Working Distance

1500~1500mm (Wide-Tele)

PTZ

Pan Range/Pan Speed

360° endless/ Pan Manual Speed: 0.1°∼400°/s, Pan Preset Speed: 400°/s

Tilt Range/Tilt Speed

0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼320°/s, Tilt Preset Speed: 320°/s

Proportional Zoom

Support

Preset Quantity

256

Preset Freezing

Support

Patrol

8 Patrols, up to 48 presets each patrol

Pattern

4 Patterns

Power Off Memory

Support

PTZ Position Display

ON/OFF

3D positioning

Support

IR

IR Distance

Up to 300m

IR Angle

Auto/Manual

Video

Max. Image Resolution

384­0x2160

Primary Stream

30fps@(3840x2160, 3072x2048, 2592x1944,1920x1080, 1280x960, 1280x960, 1280x720, 704x576)

Secondary Stream

30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream

30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate

16Kbps~16Mbps (CBR/VBR Adjustable)

Image Setting

Brightness/Contrast/Saturation/Sharpness

Network

Ethernet

1*RJ45 10M/100M Ethernet Port

Network Storage

NAS (Support NFS, SMB/CISF)

Streaming Method

Unicast / Multicast

Protocol

IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Web Viewer

IE, Chrome, Firefox, Safari Browser

Management Software

SVMS, EVMS

Smart Phone

IOS, Android

Audio

Audio Compression

G.711/AAC/G.722/G.726

Audio I/O

1IN/1out

System

Alarm I/O

4IN/2Out

RS485

Support

Storage

Support microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function

Auto Tracking, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Electronic Image Stabilization (EIS)

Support

Privacy Masking

Up to 8 areas

Region of Interest

Support

Smart Defogger

Built-In Fan & Heater combined with Software algorithm Provide Fog Free Picture

PTZ Auto Tracking

Support

SIP/VoIP Support

Yes, Voice & Video-over-IP

Events

Event Trigger

Motion Detection, Network Disconnection, External Input, Audio Alarm,IP address conflict, Illegal Access, Storage anomaly etc.

Event Action

FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.

Video Analysis (Optional)

Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection (Face Detection) , People Counting, Object Left, Object Removed

System Compatibility

ONVIF Profile S & G & T& Q, API

General

Working Condition

Temperature: -50℃~70℃ / Humidity: 0~95%(Non-condensing)

Power Supply

PoE (802.3at) / AC 24V/3A±10%

Power Consumption

13.5W MAX / 25.5W MAX(With IR on)

Surge Protection

IP67 Compliant, IK10 Certified, Level 2 lightning protection 6000V surge protection

Dimensions/Weight

Φ205mmX308mm/4Kg

Warranty

Safety:  CE, FCC, IS 13252-1 (2010), EN:60950-1, IEC 60950-1:2005

Ingress Protection: IP66 Certified EN/IEC 60529

Vandalism Protection: IK10 Certified, IEC 62262:2002

Immunity: CE, FCC
