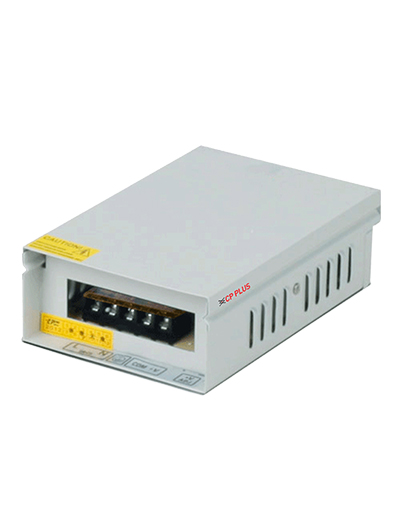

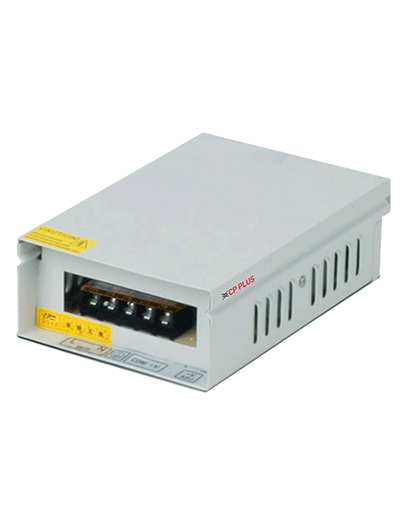

CP-DPS-MD50P-12D

Metal Case Power Supply (Premium Series)

• Wide range of Input voltage 190V~250V AC

• Add more cameras with higher power budget 12V, 5A

• Built-in EMI filter to nullify interference

• Voltage regulator switch for voltage adjustment

• Protections: Overload / Over Voltage / Short Circuit

• Metal Housing for uniform/quick heat dissipation

  ---

  Input voltage180~264VACOutput voltage12V DCCurrent Range0~5ARated Power60WRipple & Noise (max.)100mVp-pVoltage Adj. Range11.4~13.2VLine Regulation±1.0%Voltage Tolerance±2.0%Setup Rise time600ms, 30ms at full loadHold Up Time (Typ.)13ms at full loadLoad Regulation±5.0%Temperature coefficient±0.03%/°C (0~50°C)Frequency Range47~63HZEfficiency (Typ.)84%AC Current (Typ.)5A/115VAC 3A/230VACInrush Current (Typ.)20A/115VAC 40A/230VACLeakage Current<2mA / 240VACOver Load110~200% rated output power, Protection type: Shut down O/P, re-powerIsolation ResistanceI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RHWorking Humidity20~90% RH Non-condensingVibration10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axesDimension156(L) x 103(W) x 47mm(H)Store temperature-20~+85°C, 10~95%RHWorking temperature-20~+40°CWithstand VoltageI/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
