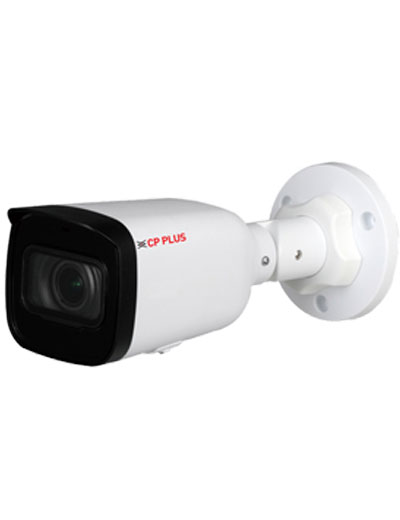

CP-UNC-LA41ZPL5-MD

1/3” 4MP PS CMOS Image Sensor (0.84667cm)

Max. 4MP(2560 × 1440)@25/30fps and 4MP(2688 × 1520)@20fps

Instastream and H.264+ dual-stream encoding

WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC

2.8~12mm Motorized lens

IR Range of 50 Mtrs, IP67, Micro SD Card, PoE

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor1/3” 4MP PS CMOS Image Sensor (0.84667cm)Minimum Illumination0.03Lux@F1.7Effective Pixels2688(H)x1520(V)BodyTypeBulletShutter SpeedAuto/Manual, 1/3~1/100000sWhite BalanceAuto/Natural/Street Lamp/Outdoor/Manual/Regional customLens2.8mm~12mm Motorized LensGain Control (AGC)Auto/ManualVideo CompressionInstastream/H.265/H.264+/H.264/H.264B; MJPEGAngle of ViewH: 98°~31°, V: 55°~18° D: 116°~36°Back Light Comp.BLC/ HLC/ WDR(120dB)Frame RateMain Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps)Resolution2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)Motion DetectionOFF/ON (4 areas, rectangular)Privacy Mask4 AreasICRAuto(ICR)/Color/B/WROIYes (4 areas)Bit RateH.264: 32 Kbps–6144 Kbps, H.265: 12 Kbps–6144 KbpsProtocolHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP;ONVIF (Profile S/Profile G); InstaOn; CGIEthernetRJ-45 (10/100Base-T)User Account20 UsersSmart PhoneiPhone, iPad, Android PhoneIR RangeIR Range of 50 Mtr., Smart IRMicro SDFTP; Micro SD card (support max. 256 GB); NASOperating Temperature-30°C to +55°C (-22°F to +131°F)/less than ≤ 95% RHPower SourceDC12V, PoE (802.3af)Power Consumption< 7.5W (PoE)Weatherproof StandardIP67Dimension243.5mm × Φ90.7mmWeight0.44Kg
