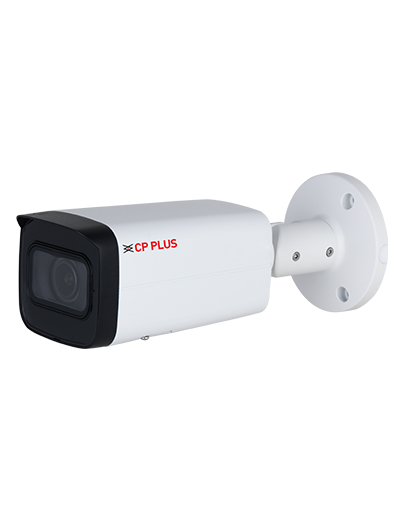

CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera - 60Mtr.

1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)

Max. Output 2MP(1920×1080)@25/30fps

Instastream, H.265, Smart H.264+ Encoding

WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, HLC, BLC

2.7mm~13.5mm Motorized Lens

IR Range of 60 Mtrs, Support Built in Mic, Micro SD Card, IP67, IK10 (optional), SMD Plus

Support Starlight Technology

Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)Minimum Illumination0.002 lux@F1.4 (Color, 30 IRE) 0.0002 lux@F1.4 (B/W, 30 IRE) 0 lux (I R on)Effective Pixels1920(H) x 1080(V)BodyTypeBulletShutter SpeedAuto/Manual, 1/3~1/100000sWhite BalanceAuto/natural/street lamp/outdoor/manual/regional customLens2.7mm~13.5mm motorized LensS/N Ratio>56dBGain Control (AGC)Auto/ManualIrisFixedVideo CompressionH.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)Max ApertureF1.4Encode StrategyInstastreamDORI DistanceW: 44.1m(Detect), 17.7m(Observe), 8.8m(Recognize), 4.4m(Identify) T: 144.8m(Detect), 57.9m(Observe), 29.0m(Recognize), 14.5m(Identify)Angle of ViewH: 108°–30°; V: 56°–17°; D: 131°–35°Back Light Comp.BLC / HLC / WDR(120dB)Video StreamingThird Stream* (Optional)- Main stream: (1920 × 1080@25fps); Sub stream: (704 × 480@15fps); Third stream: (CIF@10fps)Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Motion DetectionOff/ On (4 areas, rectangular)Privacy MaskSupported (4 areas)ICRAuto (ICR)/Color/B/WROISupported (4 areas)Audio Input1 channel (RCA port)AudioBuilt-in MicAudio Output1 channel (RCA port)Audio CompressionG.711a, G.711Mu, G726, PCM, AACAlarm IN1 channel in: 5mA 3V–5V DCAlarm Out1 channel Out: 300mA 12VDCBit RateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbpsProtocolIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, DHCP; DNS, DDNS, NTP, Multicast, ICMP, IGMP, ONVIF (profile S, profile T), CGI, InstaOn, MilestoneSmart DetectionIntrusion, Tripwire (The two functions support the classification and accurate detection of vehicle and human)EthernetRJ-45 (10/100Base-T)Alarm EventNo SD card, SD card full, SD card error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Tripwire, Intrusion, Audio Detection, Voltage Detection, Defocus Detection, External Alarm, SMD, Security ExceptionSMD PLUSSupportedUser Account6 (Total Bandwidth: 36M)SDK and APISupportSmart PhoneiPhone, iPad, Android PhoneIR RangeIR Range of 60 Mtr., Smart IRCyber SecurityVideo encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/ MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgradeMicro SDFTP; SFTP; Mirco SD card (Max. 256GB)Operating Temperature-30 °C to +60 °C (–22 °F to 140 °F)Storage Temperature-40°C to +60°C (-40°F to +140°F)Power Source12 VDC/PoE (802.3af)Power ConsumptionBasic: 2W (12 VDC); 2.6 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.6 W (12 VDC); 9.9 W (PoE)Humidity≤95%Weatherproof StandardIP67 & IK10(Optional)CasingMetalDimension238.5mm × 90.7mm × 90.7mmWeight0.76Kg
