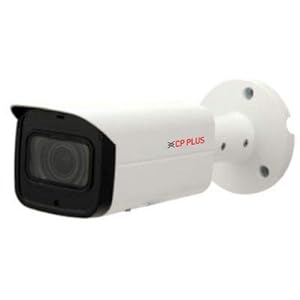

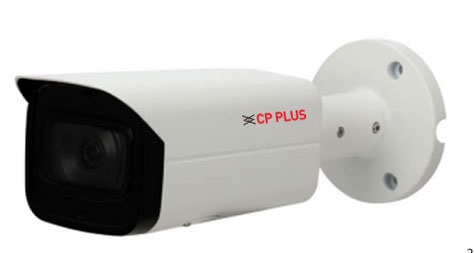

CP-UNC-TB21ZL6S-VMDS-V2 2MP Full HD WDR IR Network Bullet Camera - 60Mtr.

2MP Full HD WDR IR Network Bullet Camera - 60Mtr.

• 1/2.8” 2MP Progressive Scan CMOS (0.9071 centimeters)

• Max. 25/30fps@2MP (1920×1080)

• Supports Starlight Function

• Instastream and H.264+ Dual-stream encoding

• WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC

• 2.7mm~13.5mm Motorized Lens

• IR Range of 60 Mtrs, IP67, IK10(Optional), Micro SD Card, PoE

• Mobile Software: iCMOB, gCMOB

• CMS Software: KVMS Pro

• Image Sensor1/2.8” 2MP PS CMOS (0.9071 centimeters)Minimum Illumination0.002 Lux@F1.6 (Color, 30 IRE) 0.0002 Lux@F1.6 (B/W, 30 IRE) 0 Lux (IR on)Effective Pixels1920(H) x 1080(V)BodyTypeBulletShutter SpeedAuto/Manual, 1/3~1/100000sWhite BalanceAuto/natural/street lamp/outdoor/manual/regional customLens TypeMotorizedS/N Ratio>56dBMount Typeφ14Auto IrisFixedLens2.7mm~13.5mmClose Focus Distance0.8mMax. ApertureF1.5Gain Control (AGC)Auto/ManualIrisAutoVideo CompressionH.265; H.264+; H.264; H.264B; MJPEGEncode StrategyInstastreamMax ApertureF1.5Angle of ViewHorizontal: 108°–30° Vertical: 56°–17° Diagonal: 131°–35°DORI DistanceW- 44.1m (Detect) 17.7m (Observe) 8.8m (Recognize) 4.4m (Identify) T- 144.8m (Detect) 57.9m (Observe) 29.0m (Recognize) 14.5m (Identify)Back Light Comp.BLC / HLC / WDR(120dB)Video StreamingMain stream: 1920 × 1080@1–25/30 fps Sub stream:704 × 576@1–25 fps 704 × 480@1–30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Resolution2MP(1920 × 1080); 1.3MP(1280 × 960); 720P (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)Motion DetectionOff/ On (4 areas, rectangular)Privacy Mask4 areasICRAuto (ICR)/Color/B/WAlarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; tripwire; intrusion; audio abnormality; voltage detection; external alarm; security exceptionROIYes (4 areas)Audio CompressionG.711a; G.711Mu; G.726; AACSDK and APIYesAudio Input1 Channel (RCA port)Cyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeAudio Output1 Channel (RCA port)Alarm IN1 channel In: 5mA 5VDCAlarm Out1 channel Out: 300mA 12VDCBit RateH.264: 32 Kbps–6144 Kbps, H.265: 12 Kbps–6144 KbpsProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; ONVIF (Profile S/Profile G/ Profile T); CGI; Milestone; InstaOnSmart DetectionTripwire, IntrusionEthernetRJ-45 (10/100Base-T)User Account20 (Total bandwidth: 48 M)Smart PhoneiPhone, iPad, Android PhoneIR RangeIR Range of 60 Mtr., Smart IRMicro SDFTP; SFTP; Micro SD Card (support max. 256 GB); NASOperating Temperature-30 °C to +60 °C (–22 °F to +140 °F) ; ≤ 95%Storage Temperature-40°C to +60°C (-40°F to +140°F)Power Source12V DC/PoE (802.3af)Power ConsumptionBasic: 1.8 W (12 V DC); 2.2 W (PoE) Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS + vari-focal); 8.2 W (12 V DC); 9.8 W (PoE)Weatherproof StandardIP67, IK10 (Optional)DimensionΦ244.1 mm × 90.4 mmCasingMetalWeight0.89 kg
