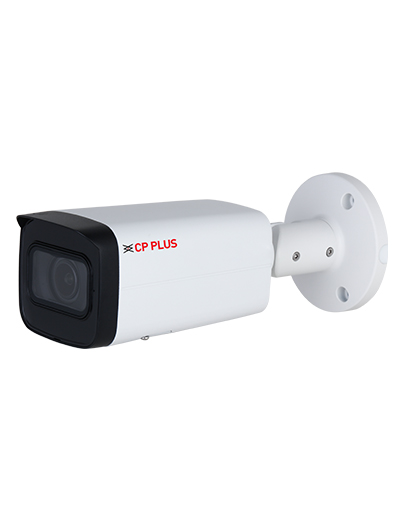

CP - UNC - TB41ZL6C - VMDS

1/2.9” 4MP PS CMOS Image Sensor(0.8758Cm)

Max. Output 4MP(2688 × 1520)@20 fps and 2560 × 1440@25/30 fps

Instastream, H.265, Smart H.264, Dual stream encoding

WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, HLC, BLC

2.7mm~13.5mm Motorized Lens

IR Range of 60 Mtrs, Support Built in Mic, Micro SD Card, IP67, IK10 (optional), SMD Plus

Support Starlight Technology

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor1/2.9” 4MP PS CMOS Image Sensor(0.8758Cm)Minimum Illumination0.008 lux@F1.5 (Color, 30 IRE) 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)Effective Pixels2688 (H) × 1520 (V)BodyTypeBulletShutter SpeedAuto/Manual, 1/3~1/100000sWhite BalanceAuto/natural/street lamp/outdoor/manual/regional customLens2.7mm~13.5mm motorized LensS/N Ratio>56dBGain Control (AGC)Auto/ManualIrisFixedVideo CompressionH.265; Smart H.264+; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Max ApertureF1.5Encode StrategyInstastreamDORI DistanceW: 64.0m(Detect) 25.6m(Observe) 12.8m(Recognize) 6.4m(Identify) T: 210.0m(Detect) 84.0m(Observe) 42.0m(Recognize) 21.0m(Identify)Angle of ViewH: 104°–29°; V: 54°–16°; D: 125°–34°Back Light Comp.BLC / HLC / WDR(120dB)Video StreamingMain stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1-25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Resolution2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480);CIF (352 × 288/352 × 240)Motion DetectionOff/ On (4 areas, rectangular)Privacy Mask4 areasICRAuto (ICR)/Color/B/WROISupported (4 areas)Audio Input1 channel (RCA port)AudioBuilt-in MicAudio Output1 channel (RCA port)Audio CompressionG.711a, G.711Mu, G726, PCMAlarm IN1 channel in: 5mA 3V–5V DCAlarm Out1 channel Out: 300mA 12VDCBit RateH.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbpsProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; ONVIF(Profile- S,T); CGI; Instaon, MilestoneEthernetRJ-45 (10/100Base-T)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire, intrusion; audio detection; voltage detection; defocus detection; external alarm; SMD; security exceptionSMD PLUSSupportedUser Account6 (Total Bandwidth: 36M)SDK and APISupportSmart PhoneiPhone, iPad, Android PhoneIR RangeIR Range of 60 Mtr., Smart IRCyber SecurityVideo encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/ MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgradMicro SDFTP; SFTP; Mirco SD card (Max. 512GB)Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosOperating Temperature-30 °C to +60 °C (–22 °F to 140 °F)Storage Temperature-40°C to +60°C (-40°F to +140°F)Power Source12 VDC/PoE (802.3af)Power ConsumptionBasic: 2.4 W (12 VDC); 3.1 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.8 W (12 VDC)HumidityLess than 95% RHWeatherproof StandardIP67 & IK10(Optional)CasingMetalDimension238.5mm × 90.7mm × 90.7mm(L × W × H)Weight0.76 kg
