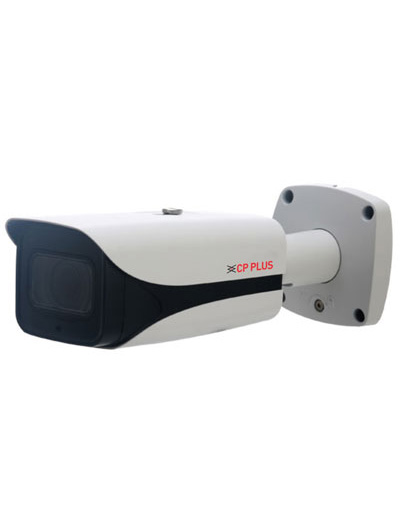

CP-UNC-TE21ZL20E-VMD 2MP Full HD WDR IR Bullet Camera - 200Mtr.

1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeters)

Max. 50/60fps@1080(1920×1080)

Instastream and H.264+ triple-stream encoding

WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC

5.3~64mm Motorized lens

IR Range of 200 Mtrs, IP67, IK10, Micro SD Card, PoE

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

mage Sensor1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)Minimum Illumination0.006Lux/F1.4 ( Color,1/3s,30IRE) 0.05Lux/F1.4 ( Color,1/30s,30IRE) 0Lux/F1.4 (IR on) B/W: 0.1 lux (at 30 IRE)Effective Pixels1920(H) x 1080(V)BodyTypeBulletShutter SpeedAuto/Manual 1/3(4) s–1/100000sMax. ApertureF1.4White BalanceAuto/Natural/Street Lamp/Outdoor/ManualLens5.3mm~64mmGain Control (AGC)Auto/ManualAngle of ViewH: 59°~5°, V:34°~3°Video CompressionInstastream/H.265/H.264+/H.264/MJPEGS/N RatioMore than 50dBDORI DistanceW– 73m (Detect) 29m (Observe) 14m (Recognize) 7m (Identify) T– 882m (Detect) 353m (Observe) 176m (Recognize) 88m (Identify)Back Light Comp.BLC / HLC / WDR(120dB)Video StreamingMain Stream: 1080P(1~50/60fps) ; Sub Stream: D1(1~50/60fps) Third Stream: 1080P(1~25/30fps)Resolution1080P (1920 × 1080)/1.3MP (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)Motion DetectionOff / On (4 Zone, Rectangle)Privacy MaskOff / On (4 Area, Rectangle)ICRAuto(ICR)/Color/B/WROIOff / On (4 Zone)Audio CompressionG.711A/G.711Mu/G.726/AACAudio Input1 (RCA port)Audio Output1 (RCA port)Alarm IN2 channel In: 5mA 5VDCAlarm Out1 channel Out: 300mA 12VDCProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP; ONVIF, PSIA, CGISmart DetectionIntrusion; tripwire, Object Abandoned/Missing, Face DetectionEthernetRJ-45 (10/100Base-T)User Account20 usersSmart PhoneiPhone, iPad, Android PhoneIR RangeIR Range of 200 Mtr., Smart IRMicro SDMicro SD card 128GBOperating Temperature-30°C~+60°C, Less than 95% RHPower Source12V DC/PoE (802.3af)Power Consumption<12.95WWeatherproof StandardIP67 & IK10Dimension273.2 mm × 95.0 mm × 95.0 mmCasingMetalWeight1.11Kg
