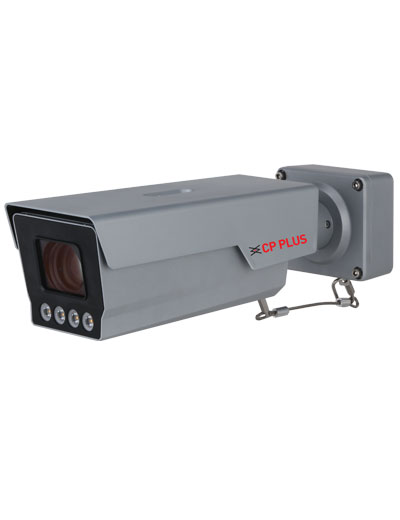

CP-UNC-TT41L3-VM 4MP IR AI Enforcement Camera
CP-UNC-TT41L3-VM 4MP IR AI Enforcement Camera
₹87500.00₹64900.00
Out of stock
1/1.8" 4 MP starlight CMOS sensor (1.411 cm)
H.265 and H.264 dual codec
Maximum Resolution: 2688 × 1520@25/30fps
Built-in 10mm~50mm lens
The maximum illumination distance is 30 Mtr
IP67, IK10 Rated
Image Sensor1/1.8'' CMOS (1.411 cm)ProcessorHigh-performance embedded processorShutter SpeedAuto/Manual 1/50 s–1/100,000 sIrisFixed iris/manual iris/auto iris/P irisFrame RateMain stream (2688 × 1520@25/30fps), (1920 x 1080@50/60fps) Sub stream (1600 × 1200@25/30fps)S/N Ratio>56dBResolution4M (2688 × 1520)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288)Back Light Compensation(Auto BLC/ HLC/ WDR (140dB)Lens10mm–50mm MotorizedMax ApertureMax. F1.33Video CompressionH.265; H.264M; H.264H; MJPEGAngle of ViewHorizontal: 9.4°–40.8° Vertical: 5.4°–22.9° Diagonal: 10.7°–46.9°Bit RateH.264: 32kbps–32767kbps; H.265: 32kbps–32767kbps; MJPEG: 512kbps–32767kbpsWhite BalanceAuto; Manual; Outdoor; Natural; Street Lamp; Partial white balanceAudio Input1 Ch.Audio Output1 Ch.Alarm IN3 channelsAlarm Out2 channels. 1 for relay, and 1 for optocouplerANPRAdopts CP Plus developed algorithms to recognize license plate numbers and lettersVehicle Logo RecognizingAcura; Alfaromeo; Ashok leyland; Astonmartin; Audi; Baic; Bently; Benz; BMW; Buick; BYD; Cadillac; Chery; Chevrolet; Chrysler; Citroen; Dacia; Daihatsu; Datsun; Dodge; DS; Ferrari; Fiat; Force; Ford; Foton; Geely; GMC; Greatwall; Hino; Honda; Hyundai; Infiniti; Isuzu; Iveco; Jac; Jaguar; Jeep; Kia; Kinglong; Land; Lexus; Lifan; Lincoln; Mahindra; MAN; Maserati; Mazda; Mercury; MG; Mini; Mitsubishi; Nissan; Opel; Peugeot; Porsche; Renault; Rollsroyce; Saab; Scania; Seat; Skoda; Smart; Subaru; Suzuki; Tata; Tesla; Toyota; UD; Volkswagen; VolvoSDK and APIYesAlarm EventStorage full, storage error, external alarm, no storage space, license plate blocklist, illegal access, and security faultIR23 m–30 m (75.46 ft–98.43 ft) (adjustable brightness)Micro SD1, supports maximum 256GB SD card local storageEthernet1 × RJ-45 Ethernet port, 10/100/1000 M network transmissionWeatherproof StandardIP67 & IK10Operating Temperature-40°C to +65°C (−40°F to +149°F)Humidity10%–90%Storage Temperature-40 °C to +65 °C (–40 °F to +149 °F)Power Source12–36 VDC, PoEPower Consumption≤ 13WDimension466.4 mm × 135.8 mm × 134.1 mm (L × W × H)Weight3.9 kg
