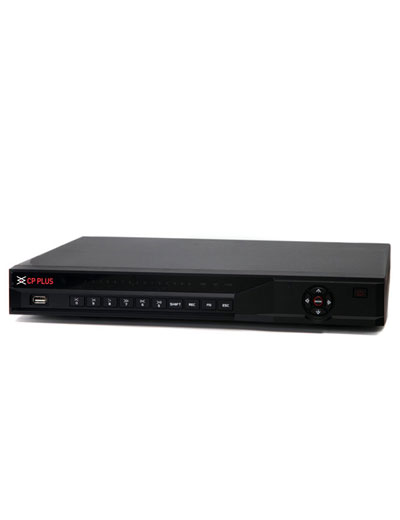

CP-UNR-4K5162-V2 16 Ch. 4K Network Video Recorder

Up to 16 channel IP camera input

Max 320Mbps incoming bandwidth

Instastream/H.265/Smart H.264+/H.264/MJPEG codec decoding

Up to 12MP resolution preview and playback

Support 2 SATA HDDs up to 10TB Each, 2 USB Ports (1 USB 3.0)

HDMI/ VGA simultaneous video output

Support Multi-brand network cameras

1-channel fisheye dewarping (AI by NVR)

ONVIF Version 2.4 conformance

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

ProcessorQuad-core embedded processorOperating SystemEmbedded LINUXTwo-way Talk1 Channel Input, 1 Channel Output, RCAUser InterfaceGUIVideo Output1 HDMI, 1 VGAVideo ResolutionHDMI1: 3840 × 2160, 1920 × 1080,1280 × 1024, 1280 × 720,1024 × 768, VGA1: 1920 × 1080, 1280 × 1024, 1280 × 720,1024 × 768, HDMI2/VGA2: 1920 × 1080Video RecordingMax 320MbpsVideo Display Split1/4/8/9/16/25/36Channel16 channelMotion DetectionMD Zones: 396(22×18).Video LosssupportsBandwidth Incoming320MbpsAlarm Input4 ChannelAlarm Output2 ChannelSmart PhoneiPhone, iPad, Android PhoneHard Disk2 SATA III Ports, up to 10TB EachTrigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsRecording ModeManual, Schedule (Regular, MD (Motion Detection) , Alarm, IVS), StopSearch ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Backup ModeUSB Device/NetworkPlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomMax User Account128 usersRecord Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secEthernet1 RJ-45 Port (10/100/1000Mbps)Interface Ports2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ), 1 RS232, 1 RS485ProtocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search , ONVIF 2.4, SDK, CGIPower SupplySingle, DC12V/4APower Consumption<9.5W (Without HDD)Working Temp-10 ~+55°C / 10~90%RH / 86~106kpaDimension375mm x 281.5mm x 56mmWeight1.6kg (without HDD)
