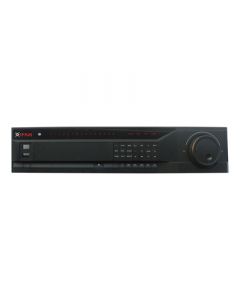

CP-UNR-4K516R8-V2 16 Ch. 4K Network Video Recorder

Up to 16 channel IP camera input

Max 320Mbps incoming bandwidth

Instastream/H.265/Smart H.264+/H.264/MJPEG codec decoding

Up to 12Mp resolution preview and playback

Support 8 SATA HDDs up to 10TB Each, 4 USB Ports(2 USB3.0, 2USB2.0), 1 eSATA Port

2 HDMI / 2 VGA simultaneous video output

Support Multi-brand network cameras

Support RAID 0/1/5/10

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

rocessorQuad-core embedded processorOperating SystemEmbedded LINUXIP Camera Input16 channelTwo-way Talk1 channel Input, 1 channel Output, RCAUser InterfaceGUIVideo Output2 HDMI, 2 VGAVideo ResolutionHDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 ; HDMI2/VGA2: 1920 × 1080Video Display Split1st Screen: 16CH: 1/4/8/9/16, 2nd Screen: 1/4/8/9/16Channel16Motion DetectionMD Zones: 396(22×18)Video LossSupportsAlarm Input16 ChannelAlarm Output6 ChannelSmart PhoneiPhone, iPad, Android PhoneBandwidth Incoming320MbpsHard Disk8 SATA III Ports, up to 10TB Each, 1 eSATA PortTrigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsRecording ModeManual, Schedule(Regular(Continuous), MD, Alarm), StopSearch ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Backup ModeUSB Device/Network/eSATA DevicePlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomMax User Account128 usersRecord Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secEthernet2 RJ-45 port (10/100/1000Mbps)Interface Ports4 USB Ports (2 Rear USB 3.0 , 2 Front USB 2.0 ) , 1 RS485, 1 RS232ProtocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, ONVIF 2.4, SDK, CGIPower SupplySingle, AC 100~240V, 50/60 HzPower Consumption<16.7W (Without HDD)Working Temp-10 ~+55°C / 10~90%RH / 86~106kpaDimension440mm x 451.5mm x 94.9mmWeight6.55kg (without HDD)
