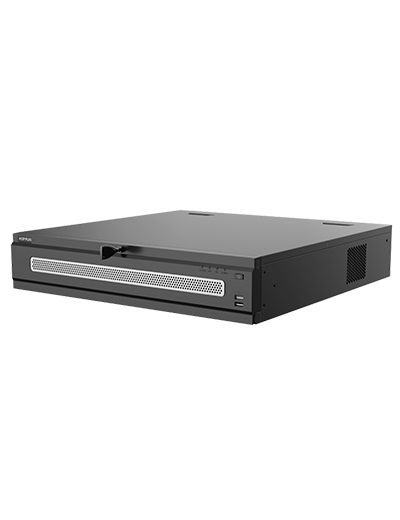

CP-UNR-4K632R8-I

Up to 32 channel IP camera input

Max. 1024/1024/800Mbps incoming/recording/outgoing bandwidth

Instastream/H.265/Smart H.264+/H.264/MJPEG/MPEG4 codec decoding

AI by NVR: 4-channel face detection and recognition; 8-channel metadata; 24-channel perimeter protection; 32-channel SMD

Support 8 SATA HDDs up to 16TB Each, 4 USB Ports (2 USB 3.0)

AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting

Support RAID 0/1/5/6/10

Supports N+M cluster

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

ocessorIndustrial-grade processorIP Camera Input32 ChannelOperating SystemEmbedded LINUXUser InterfaceWeb, Local GUIVideo Output2-channel VGA, 4-channel HDMI video output. Simultaneous mode: max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1 and HDMI2 is 4K, max. resolution of HDMI3 is 8K, max. resolution of HDMI4 is1080p Heterogeneous mode: Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2, max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1, HDMI2 and HDMI3 is 4K, max. resolution of HDMI4 is 1080pCompressionH.265; Smart H.264+; H.264; MPEG4; MJPEGEncode StrategyInstastreamDecoding Capability2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 8-channel 8 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps; 72-channel 720P@30 fps 160-channel D1@30fpsAI by NVRFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD PlusAI by CameraFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitorinResolution32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1Network BandwidthAI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoingVideo Display SplitMain screen: 1/4/8/9/16/25/36 ; Sub screen: 1/4/8/9/16/25/36Perimeter Performance AI by NVR (Number of Channels)24 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)32 channelsFace AttributesGender; age group; glasses; expressions; face mask; beardFace Detection Performance of AI by NVR (Number of Channels)4 channels (up to 12 face images/s each channel)Face Detection Performance of AI by Camera (Number of Channels)32 channelsFace Database CapacityUp to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.Face Recognition Performance of AI by NVR (Number of Channels)1. 20 channels FD (by camera) + FR (by recorder), image stream: 20 face images/s 2. 4 channels FD (by recorder) + FR (by recorder), video stream: 12 face images/sFace Recognition Performance of AI by Camera (Number of Channels)32 channelsSMD Plus by NVR32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera32 channelsMetadata Performance of AI by NVR (Number of Channels)8 channelsMetadata Performance of AI by Camera (Number of Channels)32 channelsHuman AttributesTop color, top type, hat, bag, age, gender and umbrellaMotor Vehicle AttributesLicense plate, plate color, vehicle model, vehicle logo, plate color, ornament, callingNon-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmetANPR by Camera (Number of Channels)32 channelsLicense Plate Database CapacityBlocklist and allowlist: 20,000Anomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behaviour of fanIntelligent AlarmFace detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat mapGeneral AlarmMotion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarmAlarm LinkageRecord; snapshot; IPC external alarm output; buzzer; log, preset; emailAudio Input1-channel RCAAudio Output2-channel RCAAudio CompressionG.711a; G.711u; PCM; G726Disk GroupSupportAlarm Input16 channelAlarm Output8 channelsHard Disk8 SATA ports, up to 16TB each. The maximum HDD capacity varies with environment temperatureMulti-channel PlaybackUp to 16 channelsRecord ModeManual; alarm; motion detection; scheduledNetwork ModeMulti-address mode, load balance, fault tolerance and other network port binding modesBackup MethodPortable hard drive, eSATA disk, burner, USB device and networkPlayback Mode1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/ofSmart PhoneiPhone, iPad, Android PhoneHot SwappingSupportRAIDRAID 0/1/5/6/10Ethernet2 (10/100/1000/2500 Mbps Ethernet port, RJ-45)Interface Ports4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 4 HDMI, 2 VGA, 1 RS232, 1 RS485, 1 eSATA PortProtocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search, Multicast; InstaOn cloud; Auto Registration; ICMP, IGMP, RTP, ISCSI, ONVIF (Profile T; Profile S; Profile G); CGI; SDKPower Supply100–240 VAC, 50-60 HzPower Consumption<18 W (without HDD)Operating Temperature-10 °C to +55 °C (14 °F to +131 °F)Operating Humidity10%–93% (RH)Dimensions444.0 mm × 456.6 mm x 95.0 mmWeight6.4 kg (without HDD)
