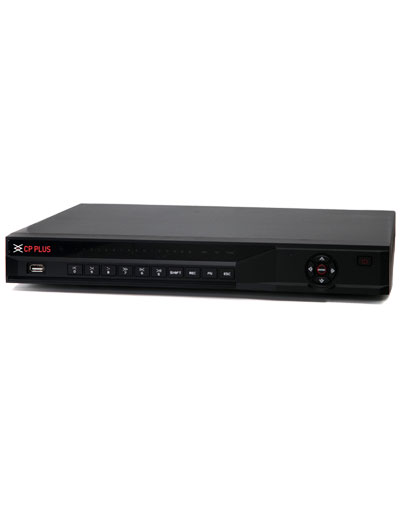

CP-UVR-3201K2-I3 32 Ch. 5M-N Digital Video Recorder

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs

• AI Instastream/ Instastream/ H.265 dual-stream video compression

• Max 32 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth

• Up to 4 channels video stream (analog channel) Perimeter Protection

• Up to 16 channels video stream (analog channel) SMD Plus

• Up to 2 channels video stream (analog channel) human face recognition

• Support 2 SATA HDDs up to 16TB Each, 2 USB Ports

• 1 HDMI / 1 VGA / 1 TV simultaneous video output

• Mobile Software: iCMOB, gCMOB

• CMS Software: KVMS Pro

ProcessorIndustrial-grade processorOperating SystemEmbedded LINUXIP Camera InputUp to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 MbpsAnalog Camera Input32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detectUser InterfaceWeb; local GUIVideo Output1 HDMI, 1 VGA, 1 TVCamera InputCVI: 5MP, 4 MP, 1080P@25/30fps; 720P@50/60fps; 720P@25/30fps. TVI: 5MP, 4MP, 3MP, 1080P@25/30fps; 720P @25/30fps. AHD: 5MP, 4MP, 3MP, 1080P@25/30fps, 720P @25/30fps.Perimeter Performance of AI by DVR (Number of Channels)Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channelResolutionHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.SMD Plus by DVR16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition changeVideo CompressionH.265/H.264+/H.264Video Display Split1/4/8/9/16/25/36Encode StrategyAI Instastream/ InstastreamAudio CompressionG.711a; G.711u; PCMAudio Output1 Channel RCAAudio Input1 Channel RCA (external); 32 Channel BNC (coaxial audio)Audio Sample Rate8 KHz, 16 bit Per ChannelMotion DetectionSupportTwo-way TalkYes (share the same audio input with the first channel)Video LossSupportAudio Bit Rate64 Kbps Per ChannelAlarm LinkageRecord; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; emailFace AttributesGender; age group; glasses; expressions; face mask; beardGeneral AlarmMotion detection, video loss, tamperingFace Detection Performance of AI by DVR (Number of Channels)2 channels (up to 12 face images/s)Bit Rate32 Kbps–6144 Kbps Per ChannelSmart PhoneiPhone, iPad, Android PhoneFace Recognition Database CapacityUp to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries ions and state can be added to each face imageAnomaly AlarmNo disk, storage error, low space, offline, IP conflict, MAC conflictFace Recognition Performance of AI by DVR (Number of Channels)2 ChannelsHard Disk2 SATA ports, up to 16TB Each, the maximum HDD capacity varies with environment temperatureRecording ModeGeneral, motion detection; intelligent; alarm; POSDisk GroupYesNetwork ModeSingle-address modeBackup ModeUSB Device/NetworkPlaybackInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)Recording Playback1/4/9/16Ethernet1 (10/100/1000 Mbps Ethernet port, RJ-45)Interface Ports2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485ProtocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn; ONVIF 21.06; CGIPower Supply12 VDC, 5 APower ConsumptionLower than 17 W (without HDD)Working Temp-10°C to +55°C (+14°F to +131°F), 0–90% RHDimension375.0 mm × 289.4 mm × 53.0 mm (W × D × H)Weight1.98kg
