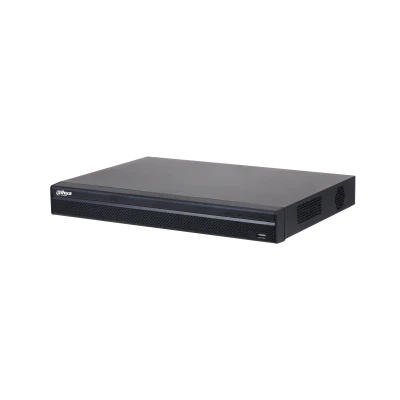

Dahua DHI-NVR4216-4KS2/L 16 Ch 8 MP 4K Metal Body NVR With 2 SATA

Brand Name :DahuaChannel :16 ChannelType of Product :NVRModel No :DHI-NVR4216-4KS2/LOperating System :Embedded LINUX

• New 4.0 user interface, Security baseline 2.1

• H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch

• Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding

• Supports mainstream cameras of ONVIF and RTSP protocols

• P2P remote surveillance, video play on mobile device

• VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K

• AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD

• Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same

•  model in batches

    16 IP channels up to 4K / 8MP
    Video compression: Smart H.265 +, H.265, Smart H.264 +, H.264
    Simultaneous HDMI (4K) and VGA (1080P) video outputs
    Output division: 1, 4, 8, 9, 16
    1 RCA input / 1 RCA audio output
    Two-way audio via RCA input / output
    Audio compression: G.711a, G.711u, PCM, G726
    Recording resolution: 4K / 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF
    Bandwidth: 160 Mbps for access, 160 Mbps for storage and 64 Mbps for forwarding
    Decoding capacity: 2 channels at 8MP (25 ips), 4 channels at 4MP (25 ips), 8 channels at 1080P (25 ips)
    Manual, alarm, motion detection and timed recording modes
    Alarm by video sensor, by privacy mask, by video loss, IP camera
    4 alarm inputs / 2 outputs
    Playback of up to 16 channels
    Internal capacity for 2 SATA HDDs up to 10TB (sold separately)
    New user interface with a simpler user experience
    Supports perimeter protection, SMD Plus and heat map functions of compatible DAHUA cameras
    Supports smart search by metadata
    Supports ANR (automatic network replenishment technology): In case of network failure, images are recorded on the IP camera's SD card, which are transferred to the NVR once the network is restored
    Software and hardware watchdog
    Watermark to preserve the integrity of the videos
    Gigabit RJ45 network port (10/100 / 1000Mbps)
    Network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
    ONVIF (Profile S), CGI and SDK compliant
    Remote access from web browser (IE9, Chrome, Firefox) and iPhone, iPad (iDMSS) and Android (gDMSS) devices
    Server Access local network and Internet
    Possibility of limiting user access to cameras in local and / or remote mode
    Can be remotely controlled by Joystick keyboard connected by TCP / IP
    Sending emails with attached photograph in alarm
    Send to FTP scheduled or in alarm
    Possibility of sending alarm, and being connected to video surveillance receiver software
    Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
    Communication ports: 2 USB 2.0 ports
    Power supply: 12V DC / 4A (≤10W, not counting discs)
    -10 ° C ~ + 55 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 375 (W) x 53 (H) x 282.4 mm
    Weight: 1.51 kg
    Desktop installation
