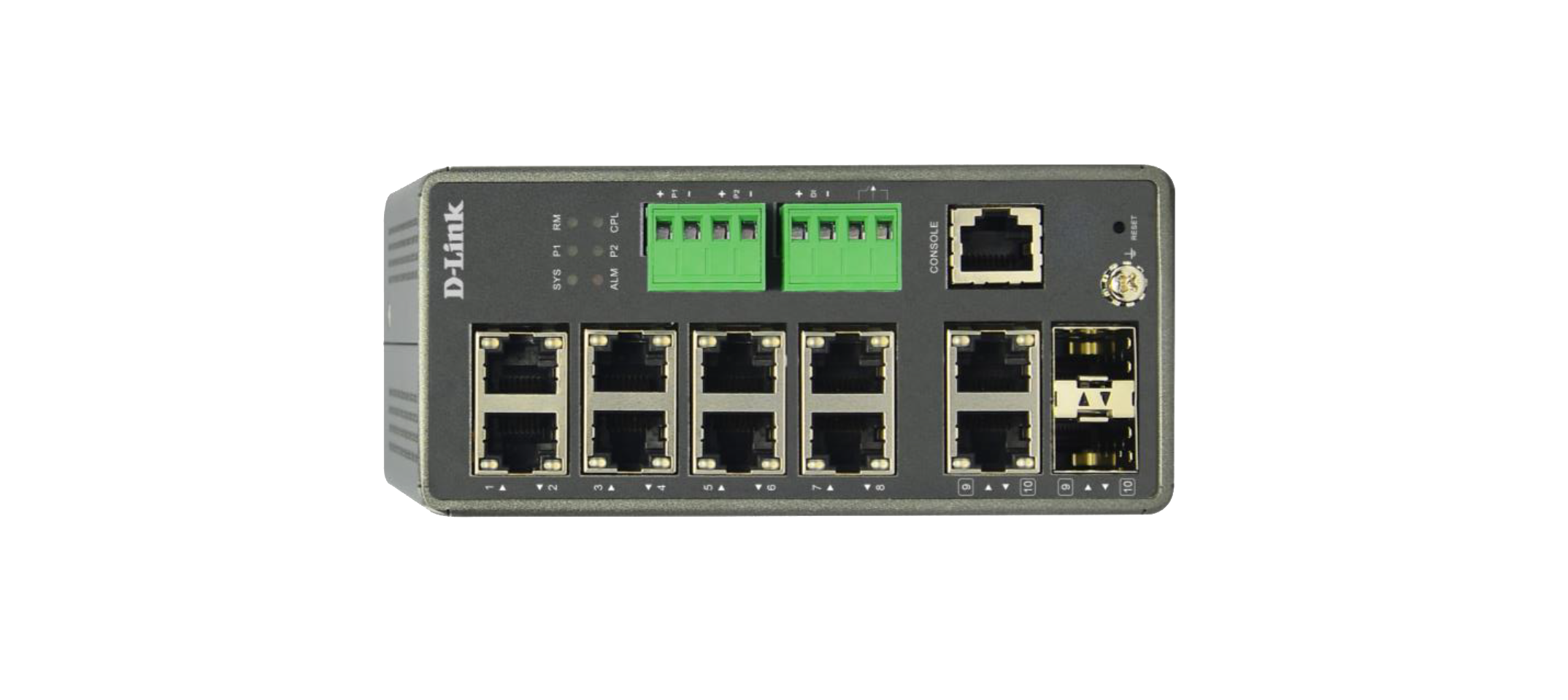

DIS-F200-10PS 8 Port PoE + Gigabit Rugged Switch

8 Port PoE + Gigabit Rugged Switch

Features Highlight

• Full wire speed layer 2+ switching with 20 Gbps switching capacity

• IPv4 & IPv6 Static Routing

• Built-in 8 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards

• Up to 30W output per PoE+ port

• PoE diagnostic for PD analysis

• 2 1000Base SFP or 1000 Base-T Combo ports

• Operates with 240 watts full PoE+ loading at -40 to 75 deg C

  ---

  Technical Specifications

  • Ethernet Interface

    8 10/100/1000Base-T PoE/ PoE+ ports

    2 Combo 10/100/1000 base-T/SFP ports

  • Switching Method

    Store & Forward

  • MAC Address

    8K MAC Address Table

  • Fast Ring Failover

    Rapid Ring Protection
    Supports STP, RSTP, MSTP

  • Multicast Support

    IGMP v1, v2. MLD v1,v2

  • VLAN support

    802.1q VLAN

    Port Based VLAN

    Voice based VLAN

    Q in Q VLAN

  • Enclosure

    IP-30 certified enclosure

  • Certifications

    Shock: IEC 60068-2-2

    Freefall: IEC 60068-2-32

    Transportation Industry : NEMA-TS2

    CE, FCC, ROHS

    ---

    Dimensions (W x H x L): 62mm x 135mm x 130mm Switching Capacity 20 Gbps Data Rate (Mbps) 148, 800 pps: 100M ports; 1, 488, 000 pps: 1000M ports Brand D-Link8 10/100/1000BASE-T PoE / PoE+ ports and 2 Combo 10/100/1OOOBASE-T/SFP ports Layer 2+ switch. Operating Temperature -40C to 75C. Features: Full wire speed layer 2+ switching with 20 Gbps switching capacity IPv4 & IPv6 Static Routing Built-in 8 Gigabit PoE+ ports compliant with IEEE802.3af/at standards Up to 30 W output per PoE+ port Two lOOOBase SFP or 1000Base-T Combo ports Operates with 240 watts full PoE+ loading at -40 to 75C Dual Redundant DC Power Supply Input Layer 2 & Layer 3 Access Control List. Specification Interface Interface 8 x 10/100/1000Base-TX PoE / PoE+ capable ports 2 x 1000Base SFP or 1000Base-T Combo ports 1 x RJ-45 Console Port (RS-232) LED Indicators POWER, Link Status, PoE status Performance Switching Capacity 20 Gbps Switching Method Store & Forward 64-byte Max. Forwarding Rate 148, 800 pps: 100M ports; 1, 488, 000 pps: 1000M ports MAC Address Table Size 8K Software Features Layer 2 Feature Flow Control 802.3x Flow Control Jumbo Frame up to 9216 bytes Link Aggregation Comply with 802.1AX and 802.3ad Max.4 groups, 4 ports per group Port Mirroring: Supports 1 Mirroring group Supports One-to-One, Many-to-One Loopback detection Layer 2 Multicast IGMP Snooping v1, v2, & v3 MLD Snooping v1 & v2 Redundancy STP, RSTP, MSTP Rapid RING Protection VLAN 802.1Q VLAN Voice VLAN Q in Q VLAN Management VLAN GARP Quality of Service (QoS) 802 1P based QoS 4 Queues per Port Queue Handling Strict Priority Weighted Round Robin (WRR) Bandwidth Control Port-based (ingress/egress, min. granularity for 10/100/1000BASE-T ports is 64 Kb/s) Unicast / Broadcast & Multicast Storm Control Access Control List (ACL) ACL Based on Switch Port 802.1p Priority VLAN ID MAC Address Ether Type IPv4 address DSCP
