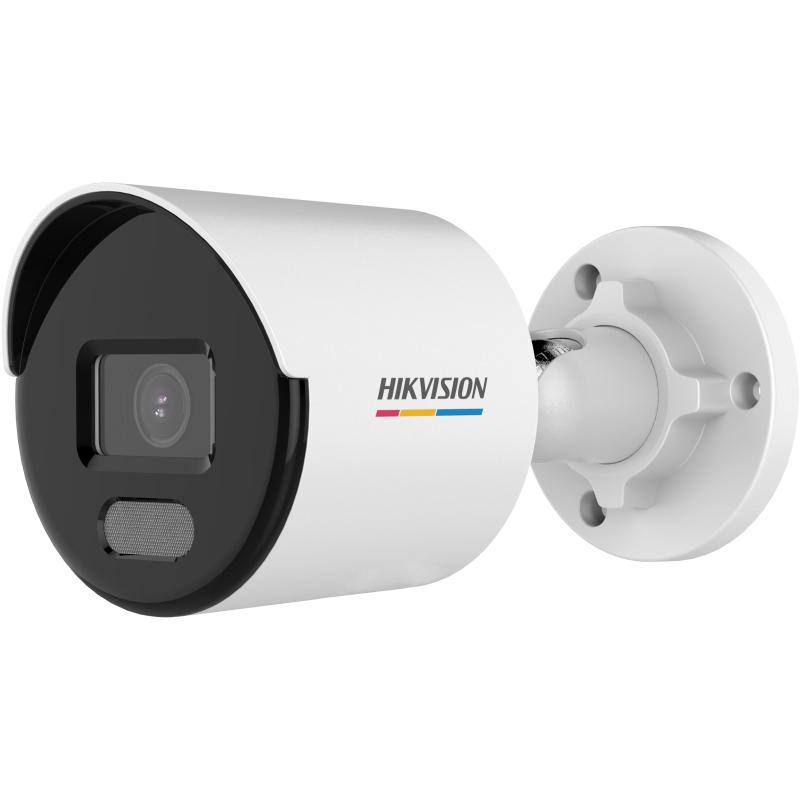

DS-2CD1047G2-L

4 MP ColorVu MD 2.0 Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution

• 24/7 colorful imaging

• Support Human and Vehicle Detection

• Water and dust resistant (IP67)

• Clear imaging even with strong back lighting due to 120 dB WDR

  ---

  ---

  ---

  • amera

  • Image Sensor1/3" Progressive Scan CMOS

  • Max. Resolution2560 × 1440

  • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

  • Shutter Time1/3 s to 1/100,000 s

  • Day & Night24/7 color imaging

  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

  • Lens

  • Lens TypeFixed focal lens, 2.8 and 4 mm optional

  • Focal Length & FOV

    2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°

    4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°

  • Lens MountM12

  • Iris TypeFixed

  • ApertureF1.0

  • Depth Of Field

    2.8 mm: 2 m to ∞

    4 mm: 2.7 m to ∞

  • DORI

  • DORI

    2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

    4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

  • Illuminator

  • Supplement Light TypeWhite Light

  • Supplement Light RangeUp to 30 m

  • Smart Supplement LightYes

  • Video

  • Main Stream

    50 Hz:

    20 fps (2560 × 1440)

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (2560 × 1440)

    24 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps

  • H.264 TypeBaseline Profile,Main Profile,High Profile

  • H.265 TypeMain Profile

  • Bit Rate ControlCBR,VBR

  • Region Of Interest (ROI)1 fixed region(s) for main stream

  • Audio

  • Audio Type-U: Mono sound

  • Environment Noise Filtering-U: Yes

  • Audio Sampling Rate-U: 8 kHz/16 kHz

  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

  • Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

  • Network

  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

  • Simultaneous Live ViewUp to 6 channels

  • APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

  • ClientiVMS-4200,Hik-Connect

  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image

  • Wide Dynamic Range (WDR)120 dB

  • SNR≥ 52 dB

  • Day/Night SwitchDay,Night,Auto,Schedule

  • Image EnhancementBLC,HLC,3D DNR

  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

  • Privacy Mask4 programmable polygon privacy masks

  • Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

  • On-Board Storage

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

  • Built-In Microphone-U: Yes

  • Reset Key-F: Yes

  • Event

  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

  • LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

  • General

  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

  • MaterialAluminum alloy body

  • Dimension

    Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"

  • Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")

  • Weight

    -L: Approx. 410 g (0.9 lb.); -LUF: Approx. 430 g (0.9 lb.)

  • With Package Weight

    -L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)

  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

  • LanguageEnglish, Ukrainian

  • Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
