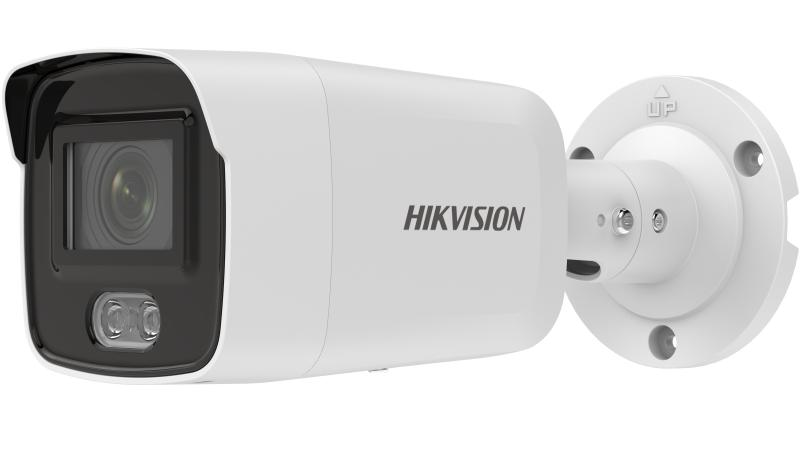

DS-2CD3086G2-IS 8MP IP

8 MP AcuSense Fixed Mini Bullet Network Camera

• Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications

• Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources

• High quality imaging with 8 MP resolution

• Excellent low-light performance with powered-by-DarkFighter technology

• Efficient H.265+ compression technology

• Clear imaging against strong back light due to 120 dB true WDR technology

• Focus on human and vehicle targets classification based on deep learning

• Water and dust resistant (IP67)

Add to Favorites

• Camera

• Image Sensor1/1.8" Progressive Scan CMOS

• Max. Resolution3840 × 2160

• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

• Shutter Time1/3 s to 1/100,000 s

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 108°, vertical FOV 53°, diagonal FOV 133°

  4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 103°

  6 mm, horizontal FOV 60°, vertical FOV 35°, diagonal FOV 68°

• Lens MountM12

• Iris TypeFixed

• ApertureF1.6

• DORI

• DORI

  2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m

  4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m

  6 mm, D: 140 m, O: 55 m, R: 28 m, I: 14 m

• Illuminator

• Supplement Light TypeIR

• Supplement Light RangeUp to 40 m

• Smart Supplement LightYes

• IR Wavelength850 nm

• HEOP

• Open Resources

  Memory: 40 MB,

  Smart RAM: 350 MB,

  eMMC: 2 GB

• Computing Power1.5 TOPS

• Open CapabilityHEOP 2.0 OpendevSDK

• Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX

• Programming LanguageC,C++

• Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Fourth Stream

  50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps

• H.264 TypeBaseline Profile,Main Profile,High Profile

• H.265 TypeMain Profile

• Bit Rate ControlCBR,VBR

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Region Of Interest (ROI)5 fixed regions for main stream and sub-stream

• Target CroppingYes

• Audio

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio TypeMono sound

• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Environment Noise FilteringYes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP

• Simultaneous Live ViewUp to 6 channels

• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central

• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image

• Image Parameters SwitchYes

• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Day/Night SwitchDay,Night,Auto,Schedule

• Wide Dynamic Range (WDR)120 dB

• Image EnhancementBLC,HLC,3D DNR,Defog

• SNR≥ 52 dB

• Privacy Mask4 programmable polygon privacy masks

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 12 VDC, 30 mA)

• Reset KeyYes

• Power Output12 VDC, max. 100 mA

• Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Smart Eventscene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function

• Face CaptureYes

• People CountingYes

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggered by specified target types (human and vehicle)
