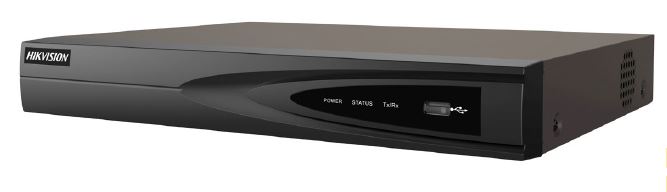

DS-7608NI-Q1 NVR 8CH

DS-7608NI-Q1 HIKVISION NVR

₹9999.00₹8500.00

Out of stock

  • H.265+/H.265/H.264/H.264+ video formats

  • Connectable to the third-party network cameras

  • Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1)

  • HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)

  • HDMI Video output at up to 4K (3840 × 2160) resolution

  • 1 SATA interface connectable for recording and backup

  • H.265+ compression effectively reduces the storage space and costs by up to 75%

  • IP video input8-ch Up to 8 MP resolution

  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

  • Incoming bandwidth80 Mbps

  • Outgoing bandwidth80 Mbps

Video/Audio output

  • Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

  • HDMI output resolution1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output

  • VGA output resolution1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 ×768/60Hz; HDMI/VGAsimultaneous output

  • Audio output1-ch, RCA (Linear, 1 KΩ)

Decoding

  • Decoding formatH.265/H.265+/H.264/H.264+/MPEG4

  • Live view / Playback resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

  • Synchronous playback8-ch

  • Capability1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p

Network management

  • Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

  • SATA1 SATA interface

  • CapacityUp to 6TB capacity for each disk

External interface

  • Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • USB interface2 × USB 2.0

  • Alarm in/out4/1 (optional)

General

  • Power supply12 VDC

  • Power≤ 18W

  • Consumption (without hard disk )≤ 10 W

  • Working temperature-10 to +55º C (+14 to +131º F)

  • Working humidity10 to 90 %

  • Chassis1U chassis

  • Dimensions (W × D × H)315 × 240 × 48 mm (31.5 × 23.88 × 4.83 cm)

  • Weight(without hard disk)disk) ≤ 1 kg (2.2 lb)
