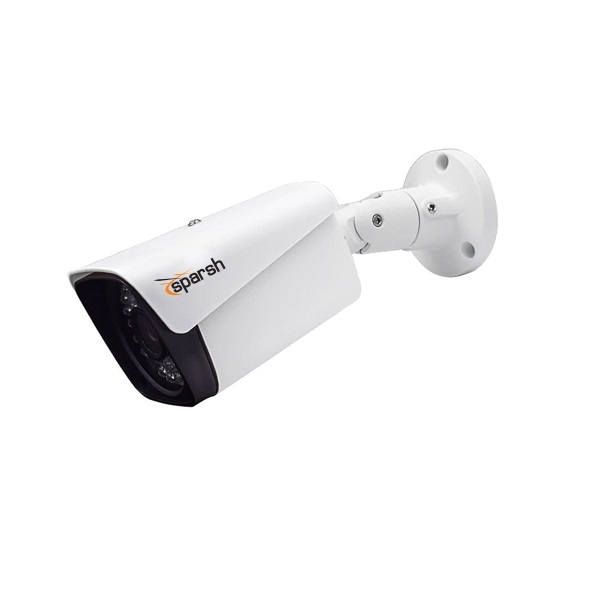

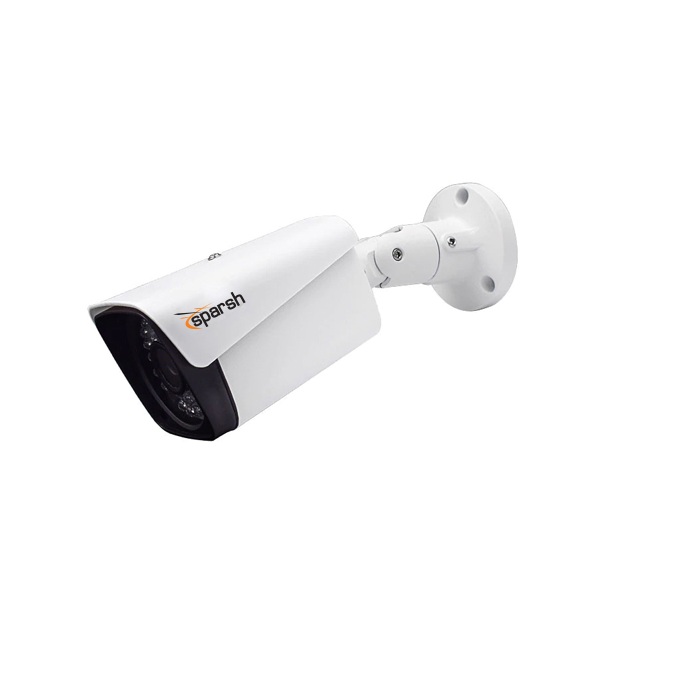

SC-IB20B-32 Fixed IR Bullet Camera 2MP IP 25 MTR
SC-IB20B-32
₹6058.00₹4890.00
Out of stock
Key feature
• 1/2.7” 2MP Progressive CMOS Sensor
• H.265+ & H.265, Dual-Stream Encoding
• 3.6mm Lens,2 MP
• IR Distance 10-25 Mtr
• IP66 Compliant
• PoE Enabled
amera
Image Sensor
1/2.7” 2MP Progressive CMOS Sensor
Effective Pixels
1920(H)x1080(V)
Minimum Illumination
Color: 0.01 Lux @F1.2, B/W: 0.001 Lux@F1.2, 0 Lux at IR ON
S/N Ratio
>60dB
IR Distance
IR Distance 10-25Mtr
Shutter Speed
Auto, Manual Mode: 1/50 sec 1/10000 sec
WDR
80db
IR On/Off Control
Auto/ Manual
IR LEDs
28 Smart LED
Lens
Lens Type
Fixed
Mount Type
M12
Focal Length
3.6mm Lens
Max. Aperture
F1.8
Angle of View
Horizontal Angle- 81°, Vertical Angle- 64°, Diagonal Angle- 81°
Focus Control
Fixed
Video
Compression
H.264 Baseline/Main Profile/High Profile Code, H.265 Main Profile, H.265+
Smart Codec
Support H.265+/H.264+
Streaming Capability
2 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)//VGA (640×480)/ CIF(352×288/352×240)
Streams
Mainstream: 2MP 1920(H)x1080(V), 1080@30fps, Sub Stream: D1 (704(H)x576(V)30 FPS
Frame Rate
1 ~ 25/30fps
Bit Rate Control
CBR/VBR
Bit Rate
Primary 1024-8192Kb/s, Secondary Stream: 341-1706Kb/s
Day/Night
Automatic/Color/Black and white
Exposure Mode
Automatic/Manual-(1/50-1/10000)
BLC Mode
On/Off
Profiles
Auto, Low Light Priority, High Light Priority
White Balance
Indoor/Outdoor/Automatic
Gain Control
Auto/Manual
Noise Reduction
Auto, 2D/3D (1-6 Levels)
Electronic Image
Support
Smart IR
Support
Digital Zoom
16X, Areas selection with Mouse
Anti-Flicker
On/Off
AE reference
1-255 Level
AE Sensitivity
1-10 Level
Flip
Off / On
IR reverse
Support
Mirror
Off / On
Text Overlay
Title, Date & Time, Weekday
Privacy Masking
Yes (4 zones)
Events
Motion Detection
22X18 Zones
Video Tempering
Support
Event Actions
Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot
Event Recording
Pre Record- 5-30 Sec, Post Record 1-120 Minute
PTZ
Pan/Tilt Range
Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360°
Safety
ONVIF Authentication
ON, Off
RTSP Authentication
Digest, None
Audio
Compression
G.711
Talk Back
Support (Optional)
Network
Ethernet
10/100M adaptive Ethernet interface
Protocol
TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP, SMTP, IGMP,802.1X, IPV6, IPv4
Interoperability
ONVIF Profile S & G
Max. User Access
20 Users
Edge Storage
Local PC for instant recording, one click Snapshot, one clicks triple Snapshot
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Sparsh VMS
Smart Phone
Supports SVMS APP for iPhone, Android
Interface
Audio
1 IN/1 Out (Optional)
Alarm
1IN/1 Out (Optional)
General
Operating Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress protection
IP66 Complaint
Vandalism protection
NA
Power Supply
DC 12V ± 10%, Optional: PoE (802.3af, class 3)
Power Consumption
Max 12W
Dimension & Weight
185mm x88mm x88mm, 340 g
Product Certification
Safety: CE, FCC, IS/EN:60950-1, IS:13252 (Part 1): 2010, BIS Registered
Immunity: FCC
