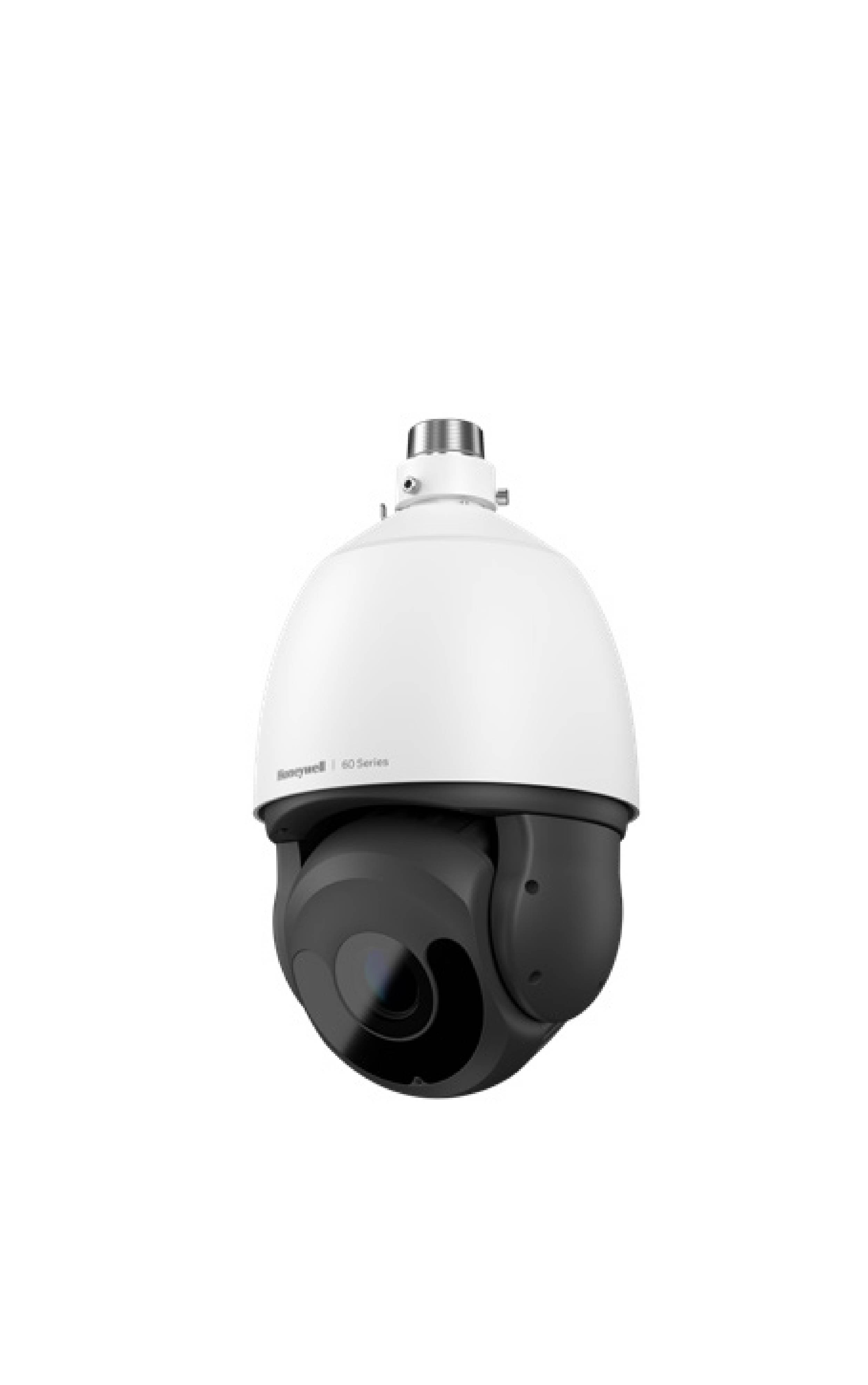

HC60WZ4R40WI

4MP Network IR PTZ Camera

WDR 140 dB, 1/1.8” CMOS

40X Optical Zoom, TDN

H.265 HEVC Smart Codec, PoE 802.3bt

24VAC, IP66, Wiper

RAM1 GBFlash512 MBVideo StandardNTSC/PALScanning SystemProgressiveImage Sensor1/1.8” CMOSSensor size (H x V)7.860 x 4.460 mmNumber of Pixels (H x V)4MP (2592 × 1520)Minimum Illumination (Color/BW)Color: 0.005 lux @ F1.6
BW: 0 lux @ F1.6 (IR on)S/N Ratio≥55 dBElectronic Shutter Speed1/1 to 1/30,000 secIR Distanceup to 500MIR Light ControlSmart IR (Auto/Manual)/OFFIR Light Number8Day/NightAuto/Day/Night/TimingBacklight CompensationWDR, HLC, BLCWhite BalanceAuto/Tungsten/Fluorescent/Daylight/ShadowGain Control0~100 %Wide Dynamic Range140 dBNoise Reduction3D DNRLens5.3 mm ~ 212 mm, F1.5 ~ F4.8, DC IrisDigital Image StabilizationYesAngle of View (H x V)H: 60.7° ~ 2.33° V: 36.8° ~ 1.38°Privacy MaskingOff / On (5 Areas)DefogYesEncryption ChipsetHardware embeddedLocal StorageMicro SD/SDHC/SDXC card slot (1 TB)Alarm Inputs / Outputs7 in/2 outResetSupportedPTZ Pan Speed0.01° ~ 300°/sPan Range360° endlessTilt Speed0.01° ~ 300°/sTilt Range-10° to 90° Auto flip 180°Preset Locations400Auto Pan ScanSupportedAuto TrackingSupportedAuto Resume After Power FailureResume to home positionVIDEO Video CompressionH.265 / H.264 / MJPEG, Smart codecResolution (16/9)2592 x 1520/1920 x 1080/1280 x 720Resolution (4/3)640 x 480/320 x 240Number of Video Streams3Frame RateMain/Second Stream/Third Stream/Fourth Stream
Main Stream: 2592 x 1520/1920 x 1080/1280 x 720 25/30 fps (1920 x 1080 50/60 fps with WDR off)
Second Stream: 1920 x 1080/704 x 576 (PAL)/704 x 480 (NTSC)/640 x 480/352 x 288 (PAL)/352 x 240 (NTSC) 25/30 fps
Third Stream: 640 x 480/352 x 288 (PAL)/352 x 240 (NTSC)/320 x 240 25/30 fpsBit Rate100 K~12 MbpsAnalog OutputSupport CVBS (Reserved)AUDIO / NETWORK Audio CompressionG.711 a/G.711 MuAudio StreamFull duplexAudio InterfaceLine in/outNetworkEthernet 10 Base-T/100 Base-TX Ethernet (RJ-45)Supported Web BrowsersMicrosoft Edge, ChromeSupported OSMicrosoft Windows 10, Windows 11ProtocolsIPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLSInteroperabilityONVIF Profile G/S/T/MMaximum Users Access10 UsersSecuritySoftware: Firmware encrypted&Signed, SD card encryption, User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance & attestation
Hardware: Secure boot, Secure authentication chipset built-inLanguages SupportedArabic, Chinese (Traditional), Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, TurkishEVENTS / ANALYTICS Video AnalyticsStandard: Motion detection, Scene change
AI Based: Smart motion, Intrusion, Multi loitering, People counter, Face detection, Line crossing detection, Unattended object detection, Missing object detectionEvent TypeAnalytics alarm, Security alarm, Disk alarm, Recording alarm, Audio detectionEvent LinkageEmail, Push notification, SD card recording, Digital outputRegion of Interest8EventEvent notification using digital output
SMTP, FTP, MicroSD cardELECTRICAL Power SupplyAC24V, PoE++ (IEEE 802.3 bt)(Class 6)Power Consumption (Max)45 WPower OutputN/AMECHANICAL DimensionsØ226.10 x 362.80 mm (8.90” x 14.28”)Product Weight5.34 kg (11.77 Ib)Package Weight7.09 kg (15.63 Ib)Body MaterialAluminium alloy + PlasticColorWhite (RAL9003) + BlackENVIRONMENTAL Operating TemperatureStarting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Working Temperature: -40 °C ~ 70 °C (-40 °F ~ 158 °F) (IR off)Relative HumidityLess than 90 %, Non-condensingIngress ProtectionIP66, IP67Impact ResistanceN/AHeaterSupported (Specific Models)WiperSupportedREGULATORY EmissionsFCC PART 15, CE (EN 55032), ICES-003, Complies with RCM and UKCAImmunityCE (EN 50130-4, EN 55035), Complies with RCM and UKCASafetyUL LISTED TO UL/CSA 62368-1, CE (EN 62368-1), Complies with RCM and UKCARoHSCE (EN 63000), UAE (cabinet decree No.10 of 2017)Country Of OriginIndia
