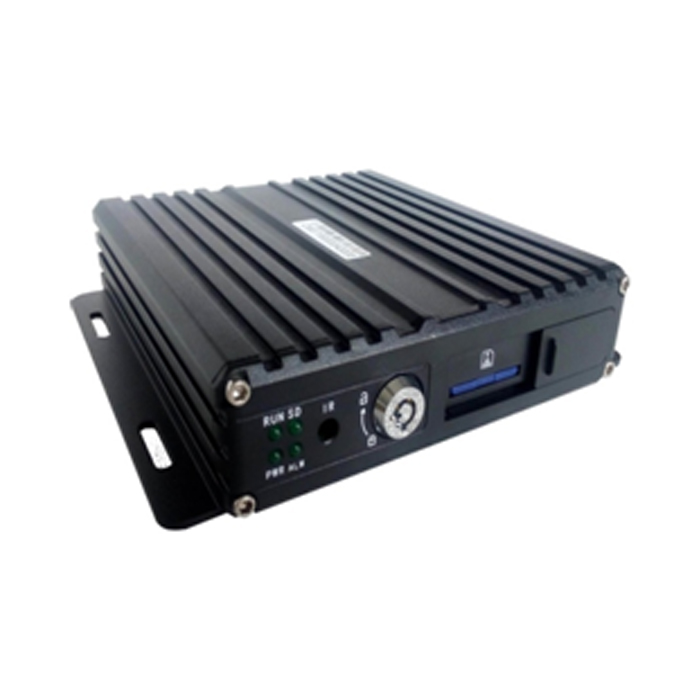

HDAVI Mobile DVR AHD 4CH 1080P

H.264 Compression
• 10-36V wide voltage design, for all kinds of automobiles
• Supports AHD 720P/960H/D1/CIF recording playback
• Supports up to 256GB SD card
• Live view and track the vehicles on google map from PC and cell phone in real time
• Playback the videos which stored in the DVR disc, Server from PC and cell phone in real time
• Support to view the vehicle’s driving route history in real time
• Support Geo-fence mechanism
• Monitor the vehicle’s fuel level & temperature
• Integrated with VoIP technology and TTS technology(Text To Speech

em

Device parameter

Performance

System

Operating system

Embedded Linux OS

Operating interface

GUI, support mouse

Password security

User password/Admin password

Audio  &  Video

Video standard

PAL/NTSC

Video compression

H.264

Image resolution

720P /960H/D1/CIF

Playback quality

720P /960H/D1/CIF

Hybrid mode

4ch 720P/4ch 960H/2ch 720P+2ch 960H

Decoding ability

1ch 720P real time

Image display

Single/QUAD display optional

Audio Compression

G.726

Audio recording

Audio & Video synchronized recording

Recording &
Playback

Recording mode

Manual/Alarm

Video bit rate

Full frame 4096Mbps,6 classes image quality optional

Audio bit rate

8KB/s

Storage media

SD card

Video inquiry

Inquiry by channel/Recording type

Local playback

Playback by file

Firmware  upgrading

Upgrading mode

Manual/Automatic/Remote/Emergency Recovery

Upgrading method

USB disk/Wireless network/SD card

Interface

AV input

4ch aviation interface

AV output

1ch VGA video output, 1ch Aviation AV output

Alarm input

4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)

SD card

1 SDXC High speed card (up to 256GB)

USB interface

1 USB 2.0 (support U disk/mouse)

Ignition input

1 ACC signal

UART

1 LVTTL Level

LED Indication

PWR/RUN

Disk lock

1

Debug port

1

Function     extension

Others

GPS/BD

Support detecting antenna Plug in/Unplug/Short circuit

3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

WIFI

802.11b/g/n, 2.4GHz

Power input

10~36V DC

Power output

5V 300mA

Power consumption

Standby 3mA

Maximum consumption 18W @12V 1.5A @24V 0.75A

Working temperature

 -20  ̴70℃

Storage

720P  24G/day/channel
960H 12-20G/day/channel

Dimension

142*152*32 mm
