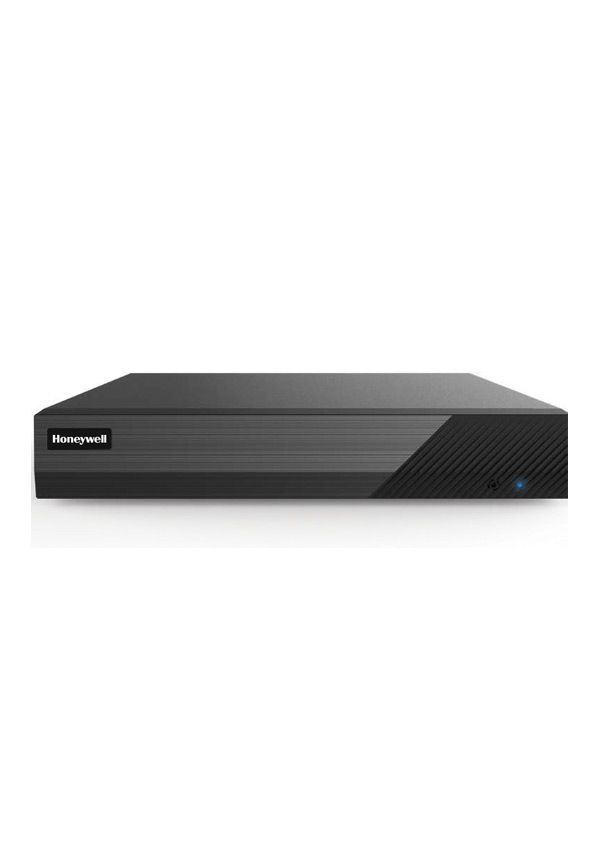

Honeywell AHD HA-DVR-5116-L

AHD HA-DVR-5116-L

This exemplary DVR from the Honeywell MMS security portfolio delivers world-class recording security solutions at reasonable budgets.

FEATURES

• H.265+ dual-stream video compression

• Supports HDCVI/TVI/AHD/CVBS video inputs

• Long transmission distance over coax cable

• Supports 1 SATA HDD, up to 10TB

  ---

  SYSTEM Main ProcessorEmbedded ProcessorOperating SystemEmbedded LINUXVIDEO AND AUDIO Analog Camera Input8/16 Channel, BNCAHD Camera5MP, 4MP, 1080P@25/30, 720P@25/30fpsCVBS CameraPAL/NTSCAudio In/Out1/1, RCATwo-way TalkReuse audio in/out, RCARECORDING Video CompressionH.265+/H.265/H.264+/H.264Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIFRecord RateMain stream:5M-N(1~10fps), 4M-N/1080P(1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps)Video Bit Rate32Kbps ~ 6144Kbps Per ChannelRecord ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secAudio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCMAudio Sample Rate8KHz, 16 bit Per ChannelAudio Bit Rate64Kbps Per ChannelDISPLAY INTERFACE1 HDMI ,1 VGAResolutionHDMI:
  8CH: 1920×1080, 1280×1024, 1280×720
  16CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
  VGA: 1920×1080, 1280×1024, 1280×720Multi-screen DisplayWhen IP extension mode not enabled:
  8CH: 1/4/8/9
  16CH: 1/4/8/9/16 When IP extension mode enabled:
  8CH: 1/4/8/9/16
  16CH: 1/4/8/9/16/25OSDCamera title, Time, Video loss, Camera lock, Motion detection, RecordingNETWORK Ethernet8CH: 1 RJ-45 Port (100M)
  16CH: 1 RJ-45 Port (1000M)Network FunctionHTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP SearchMax. User Access128 usersSmart PhoneiPhone, iPad, Android (phone and tablet)InteroperabilityONVIF ConformantVIDEO DETECTION AND ALARM Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and DiagnosisPLAYBACK AND BACKUP Playback8CH: 1/4/9
  16CH: 1/4/9/16Search ModeTime/Date; Alarm; Motion Detection; Exact Search (accurate to a second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkSTORAGE Internal HDD1 SATA Port, up to 10TB capacityAUXILIARY INTERFACE USB8CH:2 USB 2.0
  16CH:1 USB 2.0 , 1 USB 3.0RS4851 Port, for PTZ ControlELECTRICAL Power SupplyDC12V/1.5APower Consumption (without HDD)8CH:<10W
  16CH:<15WPHYSICAL DimensionsCompact 1U, 260×236×48mm(10.2×9.3×1.9)Net Weight(without HDD)8CH:1.0kg (2.6 lb)
  16CH:1.1kg(2.9 lb)ENVIRONMENTAL Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10~ 90 % RHStorage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90 % RHCERTIFICATIONS CertificationsBIS certified, CE, FCC
