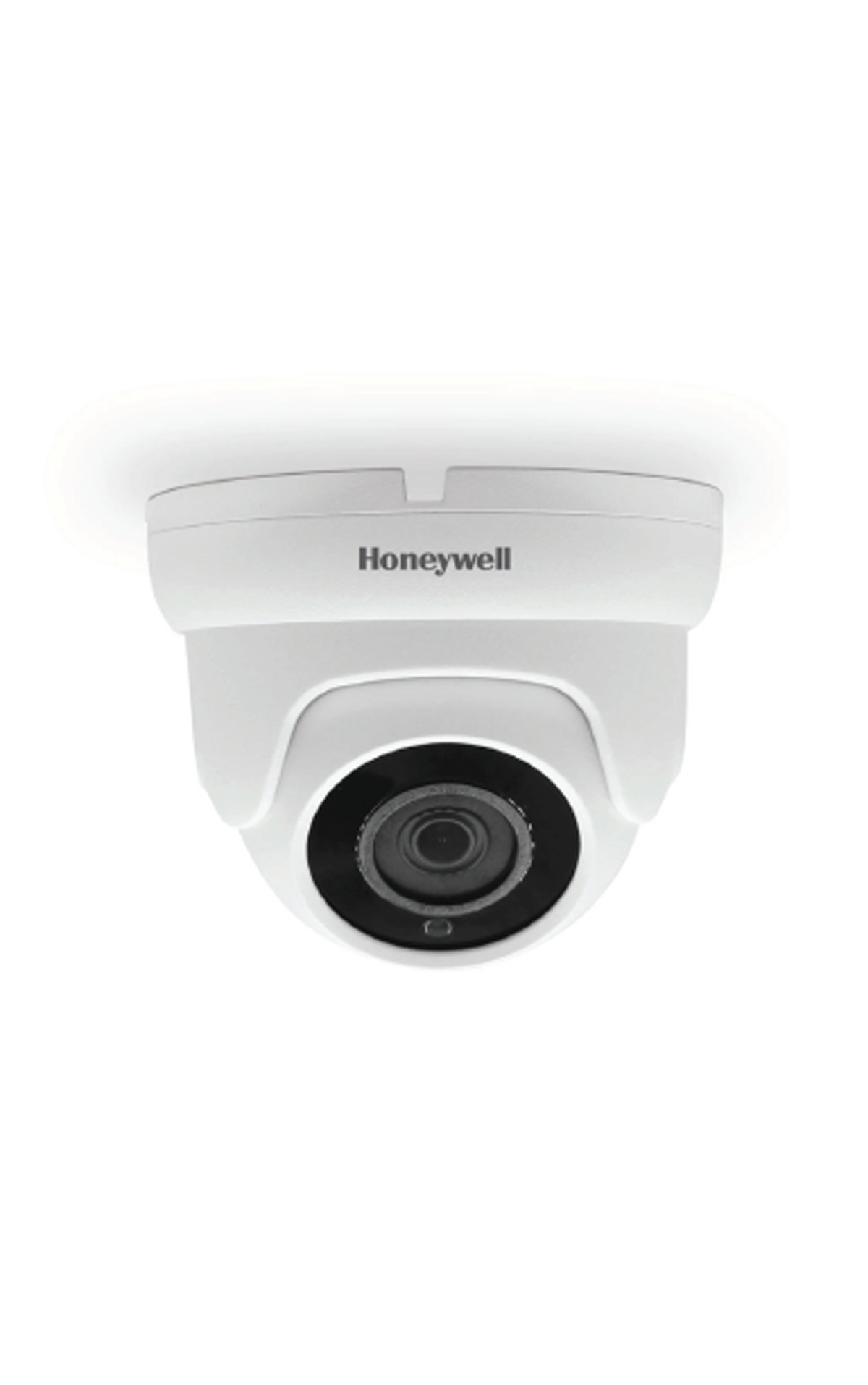

Honeywell HADC-5005PI 5 mp dome camera

HADC-5005PI

Honeywell IR Dome cameras allow for continuous HD performance over extended distances due to its 2.5 inch sensor that captures sharper images in a wide range of formats.

FEATURES

• 5MP real time high resolution

• CMOS progressive scan

• True day/night capability

• Minimum illumination: 0 Lux(IR ON)

• TDN, AWB, AGC, Defog

• 3.6mm & 2.8-12mm lens

• IR distance: up to 30 meters

• Power: 12VDC

• Vandal resistant

• Dual output AHD & CVBS

  ---

  Model No.HADC-5005PISystem Video StandardPAL/NTSCScanning SystemProgressiveImage Sensor1/2.5 CMOS sensorResolution5MNumber of Pixels5M:2592*1944Minimum Illumination0.01Lux BW, 0 Lux IRVideo OutputAHD BNC, CVBS terminalVideo Frame Rate20 - 30 fps (PAL/NTSC)RF OptionInternalAutomatic Electronic ShutterAUTO, PAL:1/25 s ~ 1/10, 000 s NTSC: 1/30 s to 1/10, 000 sLens Type3.6 mmIR LEDS14μ x 18 PCSIR Illumination DistanceUp to 20 MSNR>50 dBDay/NightYesAutomatic Gain ControlAutoWhite BalanceAuto / ManualWDRYesDigital Noise ReductionYesOSDYesElectrical Input VoltageDC12V±10%, 550mAPower Consumption6W ± 10%Mechanical Dimensions93(W) x 74(H) mmWeight400 gConstructionMetal HousingConnectorsVideo output: AHD BNC connector; CVBS terminal, Power input: 2.1 mm plugEnvironmental Operating Temperature-10℃ ~ +60℃Relative Humidity95% MaxIP RatingIP67Regulatory CertificationCESystem Compatibility Compatible DVRAHD DVR
