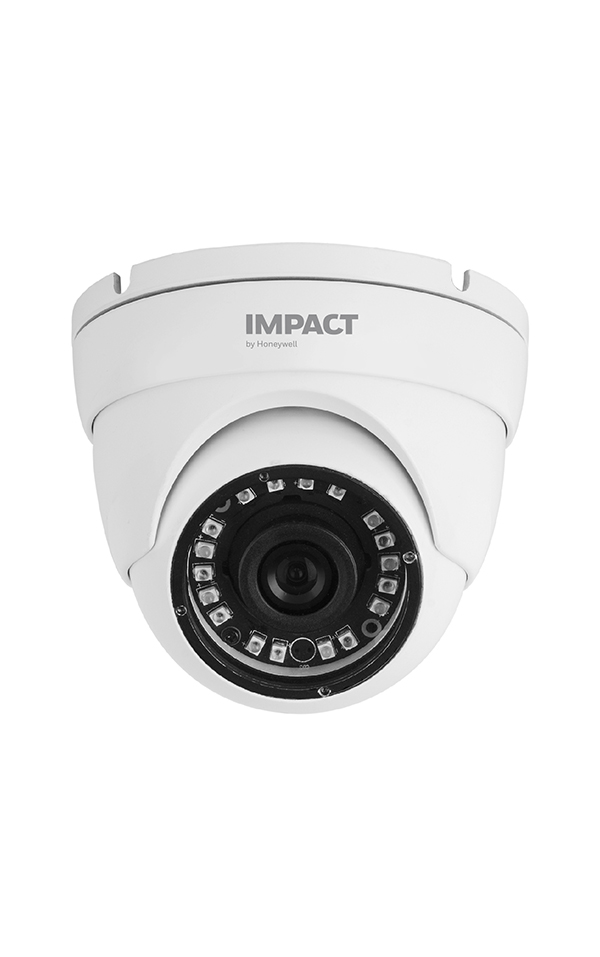

I-HADC-5005PI 5MP AHD IR Dome Camera

I-HADC-5005PI

5MP AHD IR Dome Camera

Honeywell IR Dome cameras allow for continuous HD performance over extended distances due to its 2.5 inch sensor that captures sharper images in a wide range of formats.

FEATURES

• 5MP high resolution

• CMOS progressive scan

• True day/night capability

• Minimum illumination: 0 Lux (IR ON)

• TDN, AWB, AGC, Defog

• 3.6mm & 2.8-12mm lens

• IR distance: upto 30 meters

• Power: 12VDC

  ---

  Model No.5MP AHD IR DOME CAMERACAMERA Signal SystemPAL up to 25FPSImage Sensor1/2.7”Progressive Scan Digital Image SensorEffective Pixel2560(H) X 1920(V)Horizontal Resolution5MP@25FPS, 1080P@25FPS, 720P@25FPSIRIR Distance Up to 25MLens Furnished3.6mmLens InterfaceM12Signal/Noise RatioMore than 80dBShutter Control1/25 sec to 1/1,00,000 secMin Illumination0.001Lux @ (F1.2,AGC ON), 0 Lux (IR LED ON)SynchronisationInternalWhite BalanceAutoBack Light CompensationAutoGain ControlAutoVideo Output SignalSwitchable video signal: HD-TVI/AHD/HD-CVI/CVBSTransmission DistanceUp to 500m over coaxial cable*Operating Conditions-10°C ~ +60°C, Humidity 90% or less (non-condensing)Power SupplyDC 12V ± 10%Current , Power Consumption250mA, Max 3.5WDimension (Lxwxh) , Weight145mm x 140mm x 120mm , 500gHousingMetalSafetyIP66 Compliance

  ---
