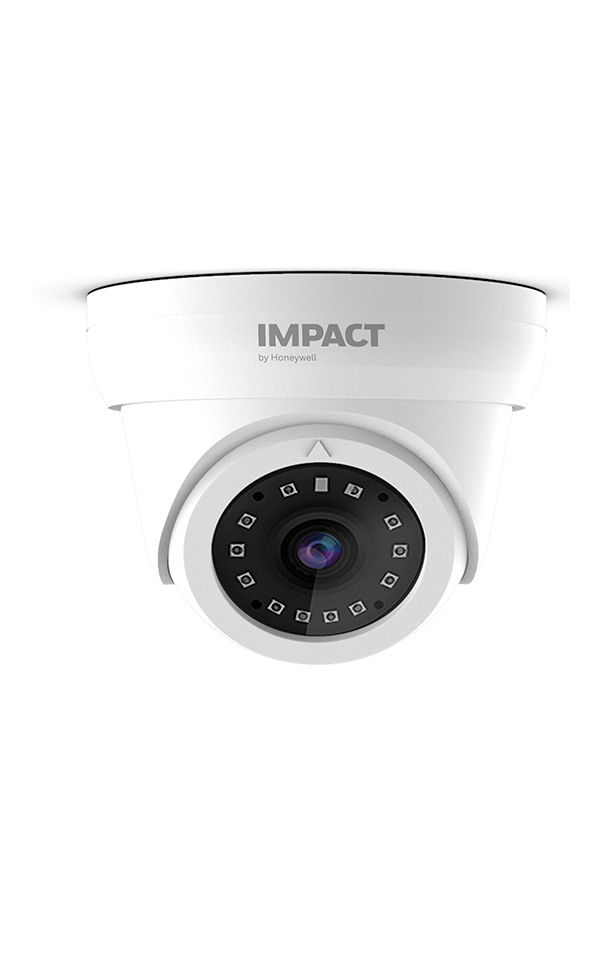

I-HADC-5005PI-L 5MP AHD IR Dome Camera

I-HADC-5005PI-L

5MP AHD IR Dome Camera

Featuring the advanced Analog High Definition (AHD) video technology, I-HADC-5005PI-L is a HD analog camera which provides 1080P (1920 X 1080) sharp, high definition images. The AHD technology ensures real-time and non compressed signal transmission via coaxial cable, which significantly reduces installation cost and provides much sharper images without video quality loss.

FEATURES

• 5MP high resolution

• CMOS progressive scan

• True day/night capability

• Minimum illumination: 0 Lux (IR ON)

• TDN (IR-cut), AWB, AGC, Defog

• 3.6mm lens

  ---

  ---

  Model No.5MP AHD IR DOME CAMERASignal SystemPAL Up to 25FPSImage Sensor1/2.7” Progressive Scan Digital Image SensorEffective Pixel2560x1920, 5 MPHorizontal Resolution5MP@25FPS, 1080P@25 FPS, 720P@25FPSIRIR Distance up tp 20MLens Furnished3.6mm,5 Mega Pixel LensLens InterfaceM12Signal/Noise RatioMore than 60dBShutter Control1/50 sec to 1/10,000 secMin Illumination0.001Lux @ (F1.2,AGC ON),0 Lux (IR LED On)SynchronisationInternalWhite BalanceAutoBack Light CompensationAutoGain ControlAutoVideo Output SignalSwitchable video signal: HD-TVI/AHD/HD-CVI/CVBSTransmission DistanceUp to 500m over coaxial cable*Operating Conditions-10°C ~ +60°C, Humidity 90% or less (non-condensing)Power SupplyDC 12V ± 10%Current , Power Consumption250mA , Max 3.5WDimension (Lxwxh) , Weight145mm x 140mm x 120mm , 460gHousingPlasticSafetyNA
