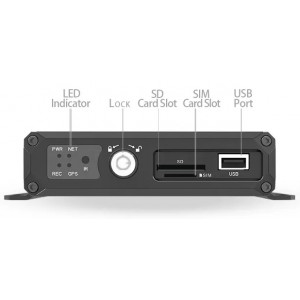

MDVR-404S -SD Card

• Brand: TVS

• Product Code: TVS-404S

  ---

   H.264 Video compression  Support SD Card up to 512 GB  4 Ch 1080P video and Audio input  4ch playback, OSD Information  Built in optional GPS,3G/4G (EVDO, WCDMA, HSPA…  Playback resolution: 4CH AHD 720P@25fps  Support WIFI ,802.11b/

• Specifications MODEL TVS-404S TVS-404SG The main processor Hi3512 operating system Embedded Linux operating system System resource 4 channel full real-time video at the same time Image compression H.264/ H.265 Audio compression ADPCM Video mode Manual, time, alarm, motion detection Video search Time search, event search, channel search backup mode USB backup Video/Audio input 4 CH air connector Video/Audio output 1 CH air connector Recording Resolution 1080P/720P/960H/D1/CIF playback Resolution 1080P/720P/960H/D1/CIF Image Control 6-speed adjustable Motion Detection Can be set to 396 (22 × 18) detection areas, can be & multi-level sensitivity Screen display Single-screen, four screens Recording speed PAL: 25 frames / s(adjustable) NTSC: 30 frames / s(adjustable) Recording storage SD Card SD,4G, GPS Local playback 1 ch or 4 ch playback alarm input 4 switches Memory interface 1 SD card interface up to 512G USB interface 1 USB 1.1 interface GPS NO YES 3G/4G NO YES Power Supply DC 9V- 36V power input Power output 12V/2A
