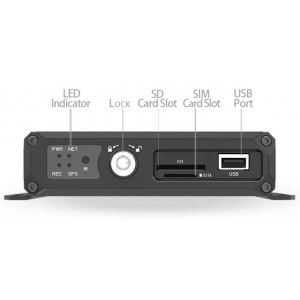

MDVR-404SAI - SD Card ADAS,DMS,4G,GPS

 4CH All in ONE MDVR with ADAS, BSD, DMS  H.265 Video compression  Support SD Card up to 512 GB  4 Ch 1080P video and Audio input  4ch playback, OSD Information  Built in optional GPS,3G/4G (EVDO, WCDMA, HSPA…  Support WIFI ,802.11b/g/n,2.4Ghz

Specifications MODEL TVS-404SAI The main processor Hi3512 operating system Embedded Linux operating system System resource 4 channel full real-time video at the same time Image compression H.264/ H.265 Audio compression ADPCM 4CH Video mode Manual, time, alarm, motion detection Video search Time search, event search, channel search backup mode USB backup Video/Audio input 4 CH air connector Video/Audio output 1 CH air connector Recording Resolution 1080P/720P/960H/D1/CIF playback Resolution 1080P/720P/960H/D1/CIF Image Control 6-speed adjustable Motion Detection Can be set to 396 (22 × 18) detection areas, can be & multi-level sensitivity Screen display Single-screen, four screens Recording speed PAL: 25 frames / s(adjustable) NTSC: 30 frames / s(adjustable) Recording storage SD CARD 512G Local playback 1 Ch or 4 Ch playback alarm input 4 switches Memory interface 1 SD card interface up to 512G Algorithms ADAS/DMS/BSD/360AVM/APC GPS NO YES 3G/4G NO YES Power Supply DC 9V- 36V power input Power output 12V/2A
