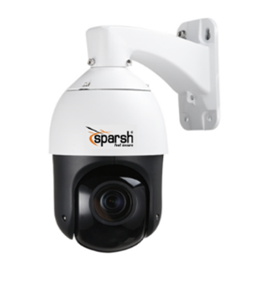

SS-EF562-(I) 2 MP IP PTZ CAMERA
2 MP IP PTZ CAMERA
₹78500.00₹38880.00
Out of stock
Video Compression: H.265/H.264/MJPEG
· IR Range: up to 150mtr
· Digital Zoom:16X
· Audio 1 in / 1 out
· Built-in MIC + speaker
· Two way audio
· Powerful Artificial intelligence
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Effective Pixel
(1920x1080)
Min. Illumination
Color: 0.01Lux @F1.2, Color: 0.002Lux @F1.55, B/W: 0.005Lux with IR on
WDR
140dB Super WDR
Shutter Time
1/100000s~1s
Day & Night
ICR Filter Auto Switch
S/N
>55dB
Digital Zoom
16X
LEDs
Lens
Focal Length
4.7-94mm @F1.6∼F2.7
4.5-162mm@F1.6∼F2.7
4.2-185mm@F1.6
Zoom Speed
Approx 3s (Optical Wide-Tele)
Field of View
H-65°∼4°, V-51°∼3°, D-78°∼5°
H-68°∼2°, V-53°∼2°, D-81°∼3°
H-72°∼2°, V-57°∼1°, D-85°
PTZ
Pan Range/Pan Speed
360° endless/ Pan Manual Speed: 0.1°∼240°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed
-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼240°/s, Tilt Preset Speed: 240°/s
Proportional Zoom
Support
Preset Quantity
256
Preset Freezing
Support
Patrol
4 Patrols, up to 10 presets each patrol
Scan
1Horizontal Scan, 1 L/R Scan
PARK Action
Watch position/ Area Scan /Horizontal 360°scan/ Cruise
Power Off Memory
Support
PTZ Position Display
ON/OFF
3D positioning
Support
IR
IR Distance
Up to 150m
IR Angle
Auto/Manual
Video
Max. Image Resolution
1920x1080
Primary Stream
25fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Video Compression
H.265/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR Adjustable)
Image Setting
Brightness/Contrast/Saturation/Sharpness
Network
Ethernet
1*RJ45 10M/100M Ethernet Port
Streaming Method
Unicast / Multicast
Protocol
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, 802.1x, QoS, IGMP, SSL
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
SVMS, EVMS
Smart Phone
IOS, Android
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio I/O
1IN/1out or (Built-in MIC + speaker, Two-way audio, voice alarm)
System
RS485
Support
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Auto Tracking, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Electronic Image Stabilization (EIS)
Support
Privacy Masking
Up to 8 areas
Region of Interest
Support
PTZ Auto Tracking
Support
Events
Event Trigger
Motion Detection, Network Disconnection, External Input, Audio Alarm,IP address conflict, Illegal Access, Storage anomaly etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record.
Video Analysis (Optional)
Intrusion Detection, Motion Detection, Human Detectionbased Auto tracking
System Compatibility
ONVIF Profile S & G Compliant
General
